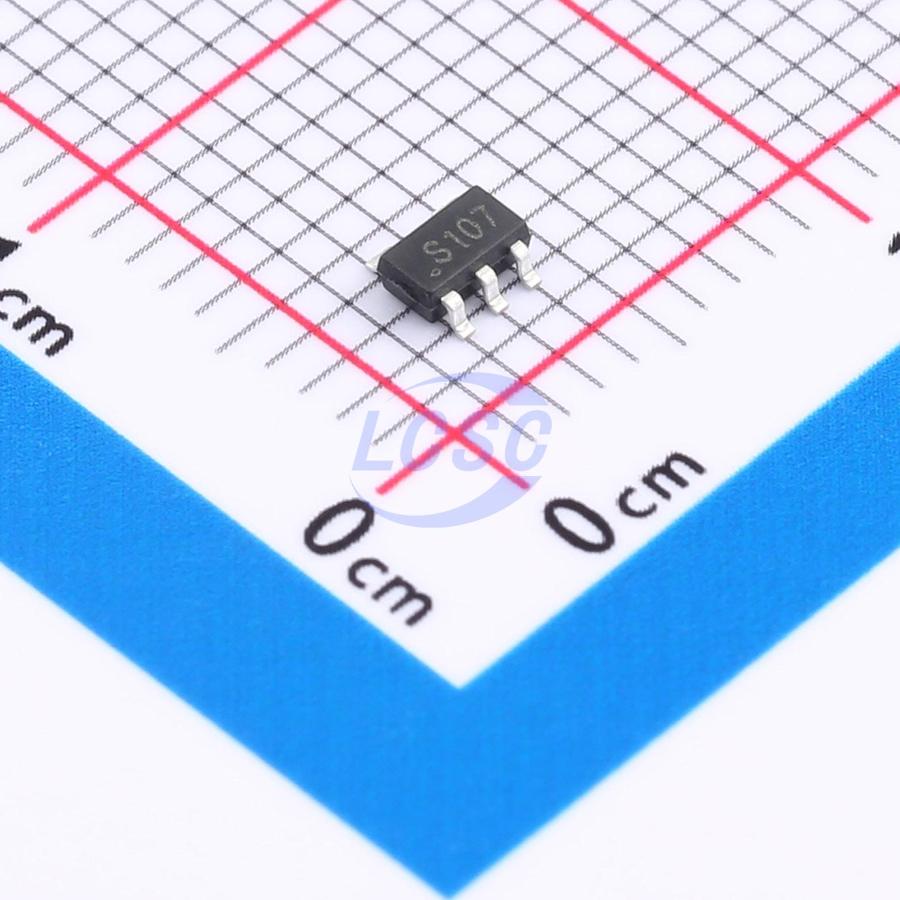

TP74LVC1G07S5
1.65V~5.5V 1 1 7.5ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G07S5
- Store part #
- C42460131
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C42460131
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.55 | ₹75.50 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 1,000+ | ₹4.59 | ₹4,590.00 |
| 5,000+ | ₹4.11 | ₹20,550.00 |
| 10,000+ | ₹3.88 | ₹38,800.00 |
10 × ₹7.55
₹75.50
excl. GST
₹89.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G07S5
₹75.50 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 7.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74LVC1G07 is a single Buffer/Driver with open-drain output. This device has power -down protective circuit, preventing device destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
Key features
- Supports 5-V VCC Operation
- loff Supports Partial-Power-Down Mode Operation
- ±24-mA Output Drive at 3.3 V
- Low Power Consumption, 10 μA Max ICC
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
