JSMSEMIDatasheet (PDF)

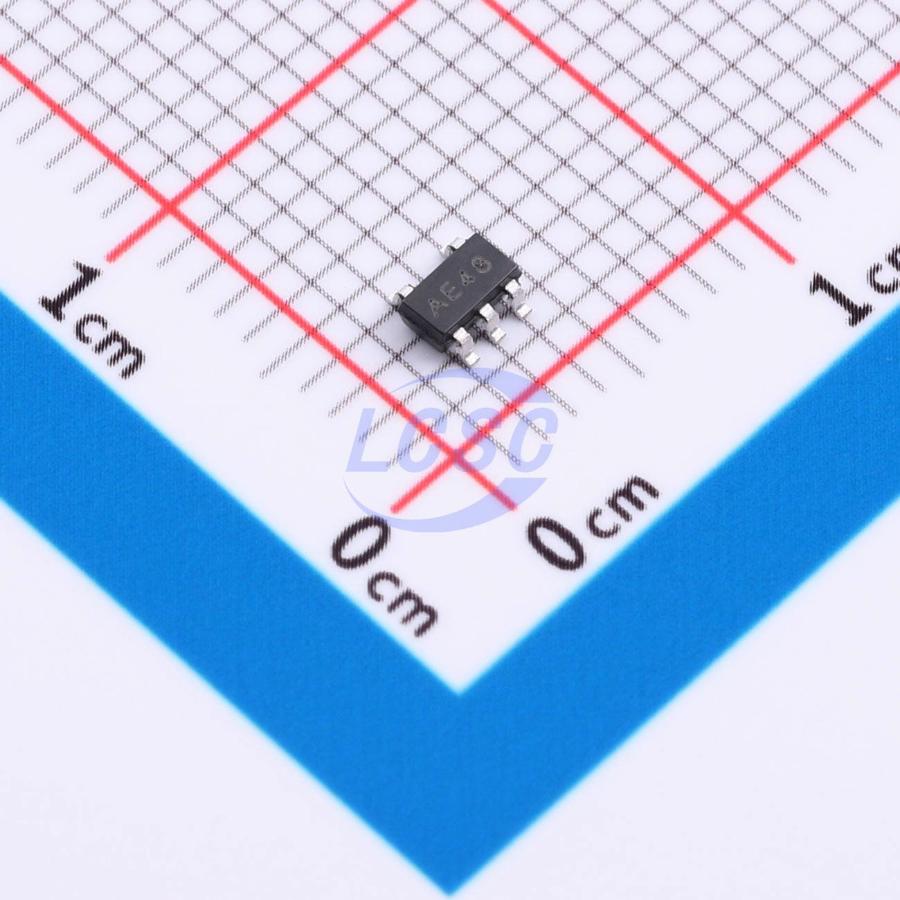

74LVC1G08GV,125-JSM
1.65V~5.5V 13.5ns@4.5V,50pF 4uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G08GV,125-JSM
- Store part #
- C53114430
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,160 in stock
#C53114430
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.92 | ₹792.00 |
| 300+ | ₹6.91 | ₹2,073.00 |
| 3,000+ | ₹6.14 | ₹18,420.00 |
| 6,000+ | ₹5.53 | ₹33,180.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08GV,125-JSM
₹99.50 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 13.5ns@4.5V,50pF
- Output Logic Level - Low
- 300mV;400mV;450mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The 74LVC1G08 provides a single 2-input AND gate function. The inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V applications.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Output drive capability ±24mA at VDD = 3.0V
- CMOS low power consumption
- Inputs accept up to 5V
- Operating temperature range: -40℃ to +125℃
- Package: SOT-23-5/SOT-353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G08GW-Q100-JSM#C53114393JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 1,940 | ₹5.87 · 1,940 in stock | View |
 | SN74LVC1G08DBVR-JSM#C7421707JSMSEMI · SOT-23-5L | JSMSEMI | SOT-23-5L | 3,000 | ₹5.40 · 3,000 in stock | View |
