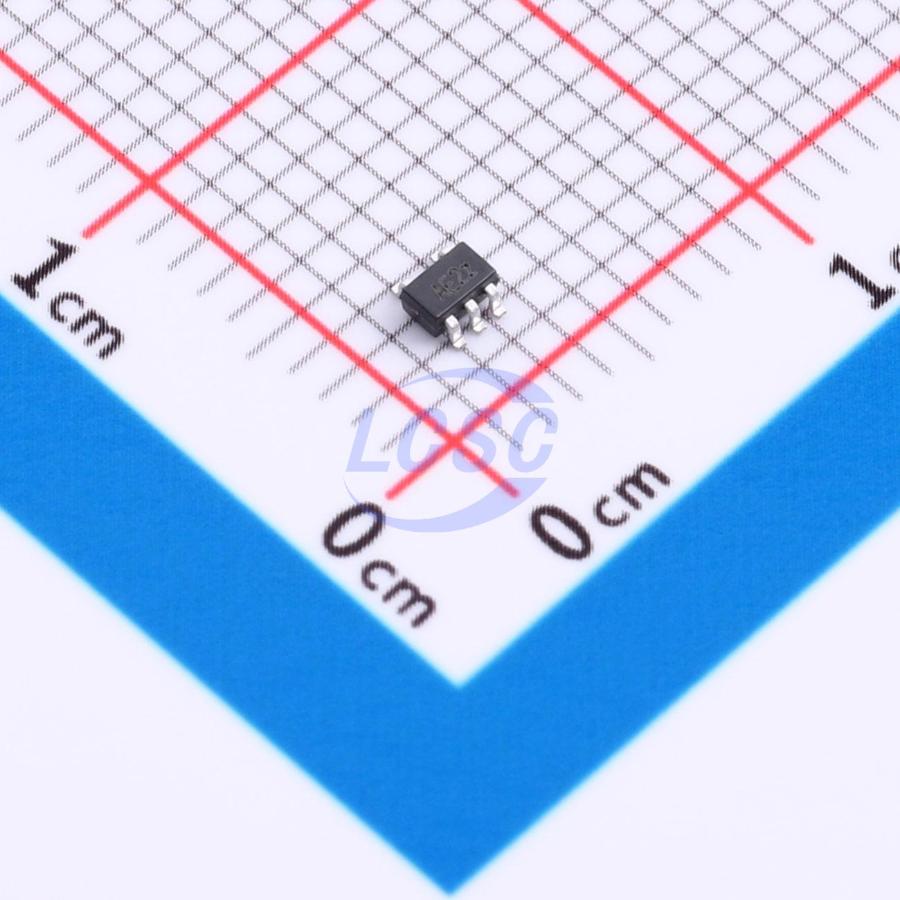

74LVC1G08GW-Q100-JSM
1.65V~5.5V 21ns@1.65V,30pF 4uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G08GW-Q100-JSM
- Store part #
- C53114393
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C53114393
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.87 | ₹58.70 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹5.87
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08GW-Q100-JSM
₹58.70 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 21ns@1.65V,30pF
- Output Logic Level - Low
- 300mV;400mV;450mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This device provides a single 2-input AND gate function. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V applications.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- Output drive current: ±24mA (at VDD = 3.0V)
- CMOS low power consumption
- Inputs accept voltages up to 5V
- Operating temperature range: -40°C ~ +125°C
- Package: SOT-23-5/SOT-353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G08GV,125-JSM#C53114430JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 10,570 | ₹9.95 · 10,570 in stock | View |
 | SN74LVC1G08DBVR-JSM#C7421707JSMSEMI · SOT-23-5L | JSMSEMI | SOT-23-5L | 3,020 | ₹5.40 · 3,020 in stock | View |
