TECH PUBLIC

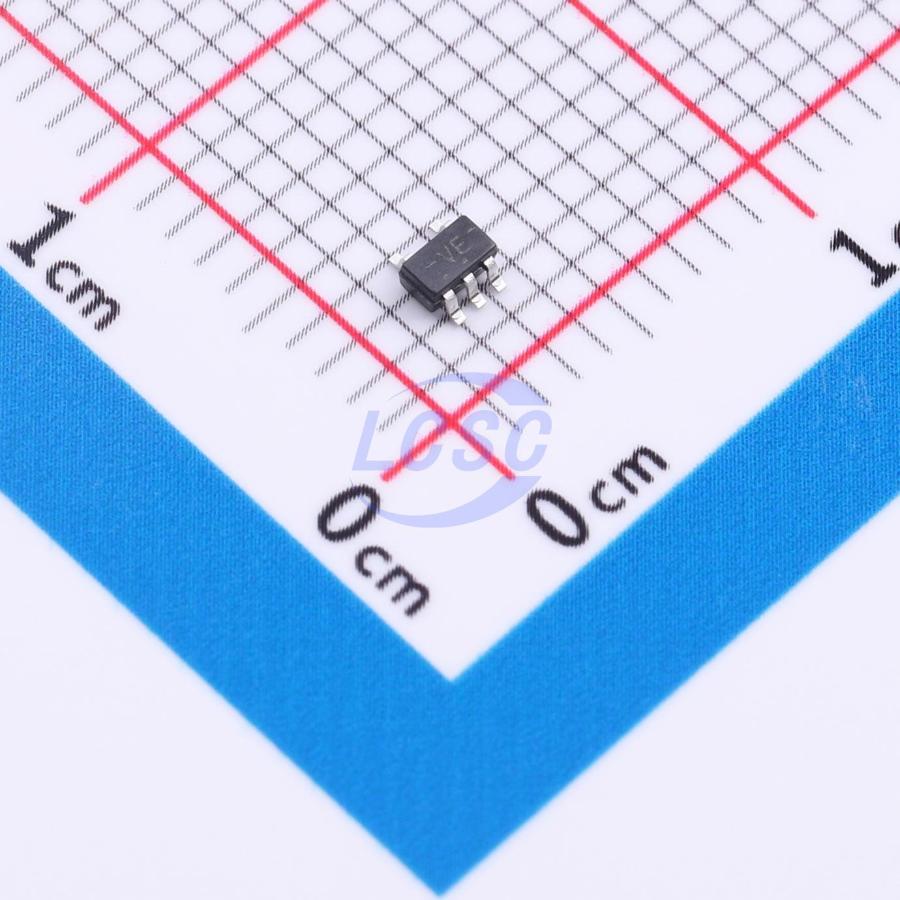

74LVC1G08SE-TP

10uA 1.65V~5.5V 7ns@5V,50pF SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G08SE-TP
Store part #: C52098134
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C52098134

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.85	₹58.50
100+	₹4.59	₹459.00
300+	₹3.97	₹1,191.00
3,000+	₹3.51	₹10,530.00
6,000+	₹3.14	₹18,840.00
9,000+	₹2.95	₹26,550.00

Quantity (min 10, multiples of 10)

10 × ₹5.85

₹58.50

excl. GST

₹69.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G08SE-TP

₹58.50 for 10 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Logic Family: 74LVC
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Propagation Delay: 7ns@5V,50pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

74LVC1G08 is a 2-input AND gate implementing the logic function Y = A × B. The device incorporates a power-off protection circuit to prevent damage during power-down conditions.

Applications

Voltage level translation
General-purpose logic
Power-off signal isolation
Personal computers
Network equipment
Laptops
Netbooks
PDAs
Tablets
E-readers
Computer peripherals
Hard disk drives
CD/DVD ROM
TVs
DVD
Digital video recorders
Set-top boxes
Mobile phones
Personal navigation/GPS devices
MP3 players
Cameras
Camcorders

Key features

Operating voltage range: 1.65V ~ 5.5V
Low quiescent current: I_CC = 10μA (maximum)
±24mA output drive capability (VCC=3.0V)
Power-off protection
ESD protection exceeds JESD 22: 2000-V Human Body Model (A114-A), 1000-V Charged Device Model (C101)
Available in SOT23-5 package
Available in SOT353 package
