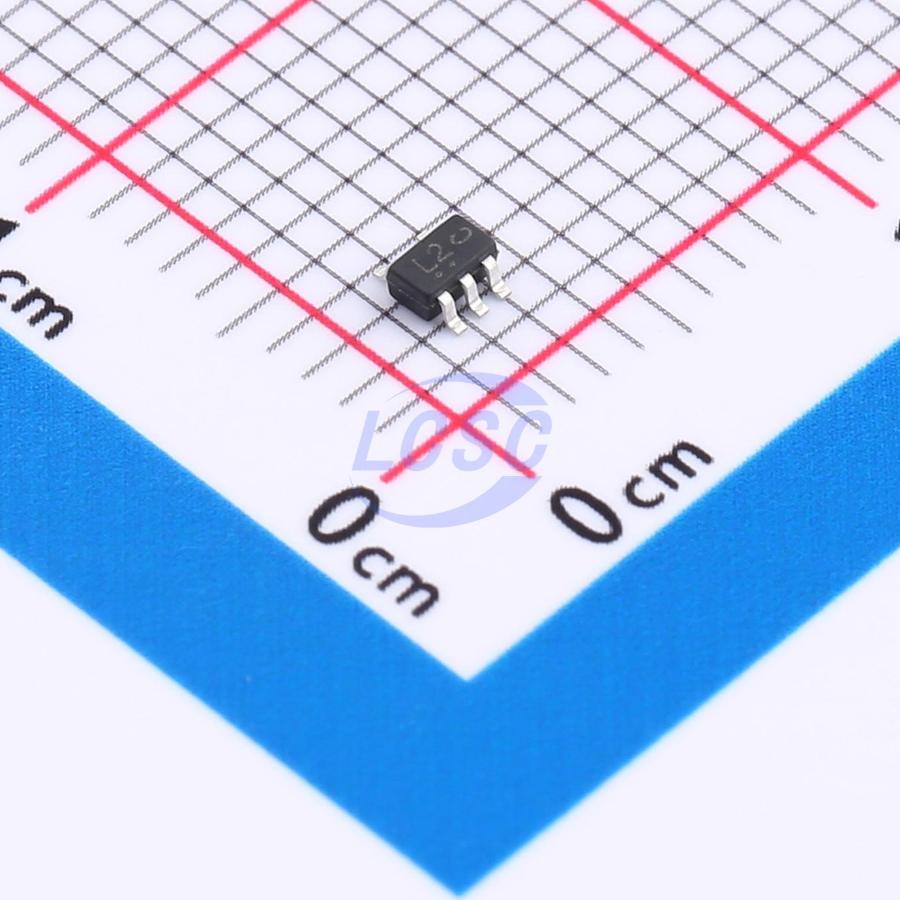

NL17SZ08DFT2G-TP
10uA 1.65V~5.5V 9.5ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE 2-INPUT POSITIVE-AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL17SZ08DFT2G-TP
- Store part #
- C42460261
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C42460261
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.39 | ₹63.90 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 1,000+ | ₹3.89 | ₹3,890.00 |
| 5,000+ | ₹3.48 | ₹17,400.00 |
| 10,000+ | ₹3.28 | ₹32,800.00 |
10 × ₹6.39
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ08DFT2G-TP
₹63.90 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;600mV;800mV
- Propagation Delay
- 9.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NL17SZ08DFT2G-TP is a 2-input AND gate which provides the Function Y = A × B. This device has power-down protective circuit to prevent device form destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server
- AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Low Power Current: Icc = 10μA (Max.)
- ±24mA Output Drive (VCC = 3.0V)
- Power Down Protection
- ESD Protection Exceeds JESD 22 -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G08C5#C42460134TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,090 | ₹7.55 · 2,090 in stock | View |
 | TC7S08FU-TP#C54195001TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹6.34 · 2,990 in stock | View |
 | NC7SZ08P5X#C19829607TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,640 | ₹6.52 · 2,640 in stock | View |
 | TC7SZ08FU-TP#C54195036TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,900 | ₹6.34 · 2,900 in stock | View |
 | SN74LVC1G08DCKR#C19829629TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 70 | ₹7.98 · 70 in stock | View |
