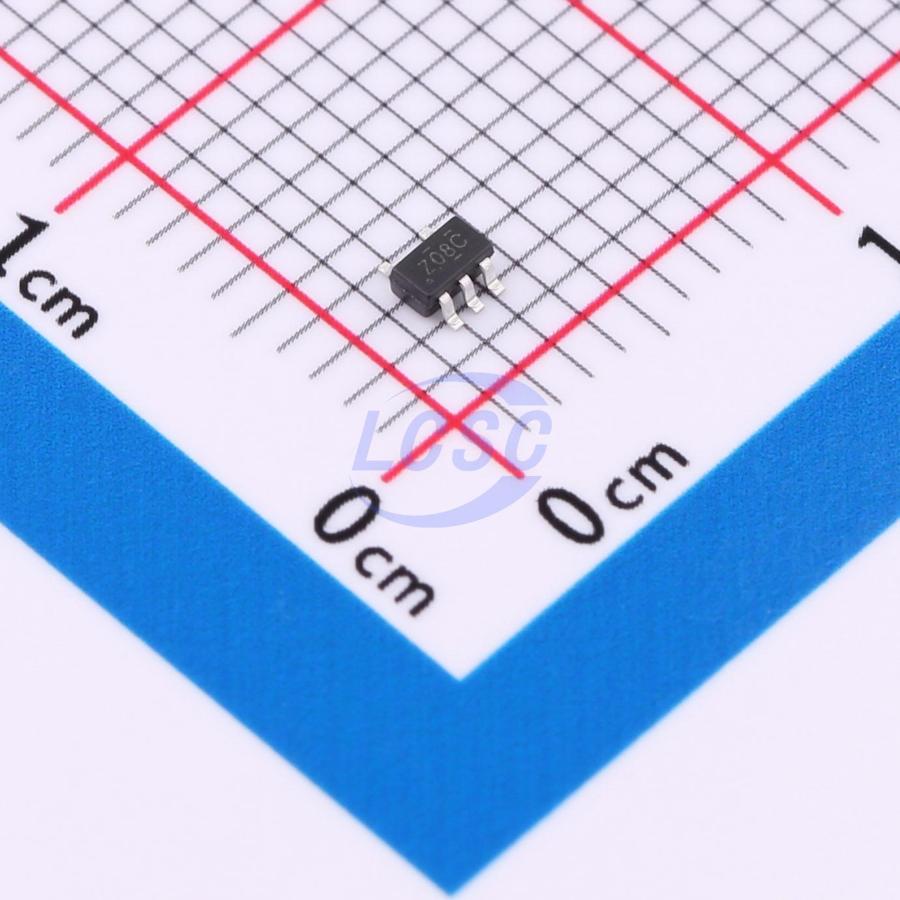

NC7SZ08P5X

This single 2-input positive-AND gate is designed for 1.65-V to 5.5-V Vcc operation. The NC7SZ08 performs the Boolean function Y = A • B or Y = (A(overline) + B(overline))(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. The NC7SZ08 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.

Applications

• Active Noise Cancellation (ANC)
• Barcode Scanner
• Blood Pressure Monitor
• CPAP Machine
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditionin
• Network-Attached Storage (NAS)
• Server Motherboard and PSU
• Software Defined Radio (SDR)
• TV: High-Definition (HDTV), LCD, and Digital
• Video Communications System
• X-ray: Baggage Scanner, Medical, and Dental

Key features

• Supports 5-V Vcc Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to Vcc
• Max tpd of 3.8 ns at 3.3 V
• Low Power Consumption, 10 μA Max Icc
• ±24 mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
• Wide operating voltage range.
• Operates from 1.65 V to 5.5 V
• Allows down voltage translation.
• Inputs accept voltages to 5.5 V
• Ioff feature allows voltages on the inputs and outputs, when Vcc is 0 V.
