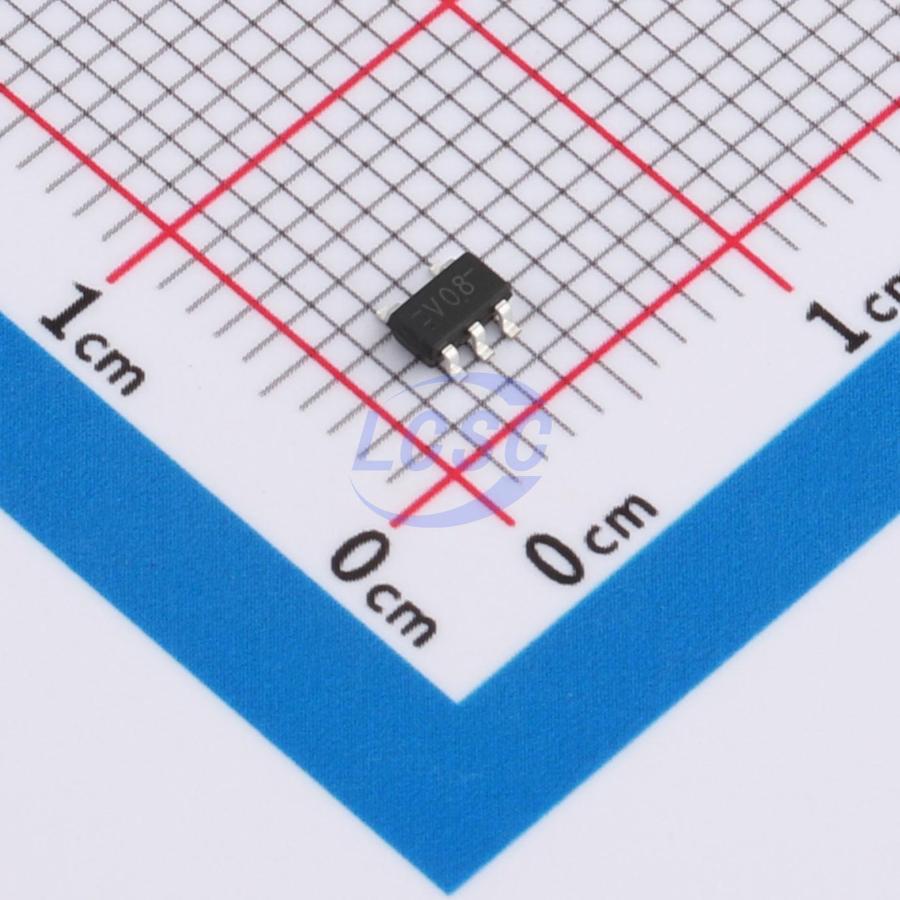

74LVC1G08W5-TP
10uA 1.65V~5.5V 7ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G08W5-TP
- Store part #
- C52098147
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C52098147
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08W5-TP
₹58.90 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
74LVC1G08 is a 2-input AND gate with logic function Y = A × B. The device features a built-in power-down protection circuit to prevent damage when the supply voltage is off.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- Personal computers
- Network equipment
Key features
- Operating voltage range: 1.65V~5.5V
- Low quiescent current: ICC = 10μA (maximum)
- Output drive capability: ±24mA (at VCC = 3.0V)
- Power-off protection
- ESD protection exceeds JESD 22:
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G08GV#C19829591TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 12,580 | ₹7.57 · 12,580 in stock | View |
 | SN74LVC1G08DBVR#C19829660TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 14,690 | ₹5.49 · 14,690 in stock | View |
 | TP74LVC1G08S5#C42460133TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,590 | ₹7.44 · 4,590 in stock | View |
 | TC7SZ08F-TP#C54195035TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
 | NC7SZ08M5X#C19829501TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,610 | ₹6.89 · 4,610 in stock | View |
