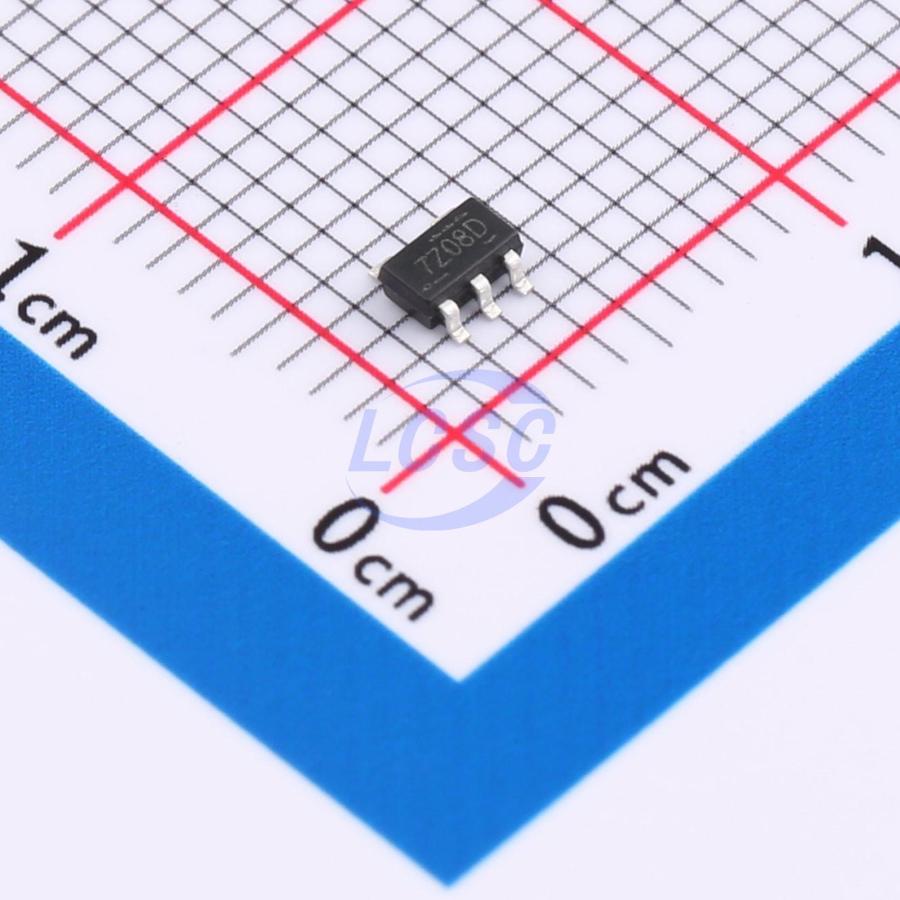

NC7SZ08M5X
1.65V~5.5V 3.6ns@3.3V,15pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single 2-Input Positive-NAND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ08M5X
- Store part #
- C19829501
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,610 in stock
#C19829501
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.89 | ₹68.90 |
| 100+ | ₹5.37 | ₹537.00 |
| 300+ | ₹4.60 | ₹1,380.00 |
| 3,000+ | ₹4.04 | ₹12,120.00 |
| 6,000+ | ₹3.57 | ₹21,420.00 |
| 9,000+ | ₹3.35 | ₹30,150.00 |
10 × ₹6.89
₹68.90
excl. GST
₹81.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ08M5X
₹68.90 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.6ns@3.3V,15pF
- Output Logic Level - Low
- 300mV
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.5V;1.9V;2.5V;2.6V;4V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
This single 2-input positive-AND gate is designed for 1.65-V to 5.5-V Vcc operation. The NC7SZ08 performs the Boolean function Y = A · B or Y = MR(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. The NC7SZ08 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
Applications
- Active Noise Cancellation (ANC)
- Barcode Scanner
- Blood Pressure Monitor
- CPAP Machine
- Fingerprint Biometrics
- HVAC: Heating, Ventilating, and Air Conditionin
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radio (SDR)
- TV: High-Definition (HDTV), LCD, and Digital
- Video Communications System
- X-ray: Baggage Scanner, Medical, and Dental
Key features
- Supports 5-V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Provides Down Translation to Vcc
- Max tpd of 3.8 ns at 3.3 V
- Low Power Consumption, 10 μA Max Icc
- ±24 mA Output Drive at 3.3 V
- Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7SZ08F-TP#C54195035TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
 | TP74LVC1G08S5#C42460133TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,590 | ₹7.44 · 4,590 in stock | View |
 | 74LVC1G08GV#C19829591TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 12,580 | ₹7.57 · 12,580 in stock | View |
 | 74LVC1G08W5-TP#C52098147TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,510 | ₹5.89 · 2,510 in stock | View |
 | SN74LVC1G08DBVR#C19829660TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 14,690 | ₹5.49 · 14,690 in stock | View |
