TECH PUBLICDatasheet (PDF)

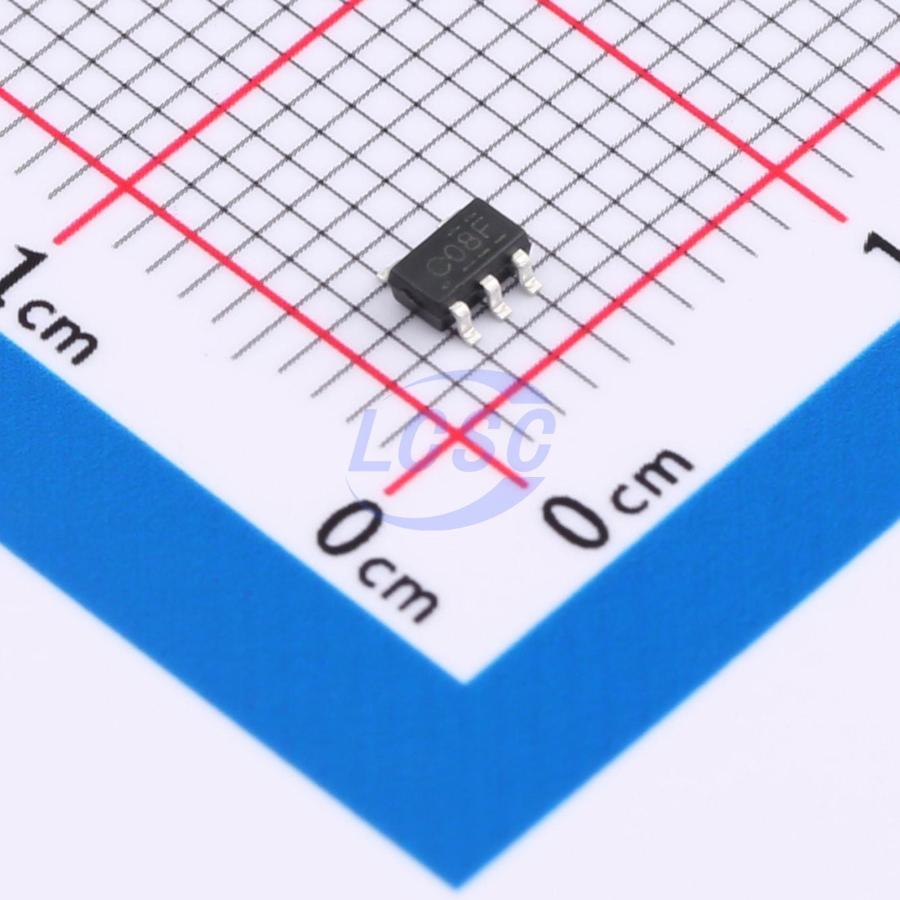

SN74LVC1G08DBVR
10uA 1.65V~5.5V 11ns@1.8V,30pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-INPUT AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G08DBVR
- Store part #
- C19829660
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,690 in stock
#C19829660
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.28 | ₹9,840.00 |
| 6,000+ | ₹2.92 | ₹17,520.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G08DBVR
₹54.90 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;1
- Propagation Delay
- 11ns@1.8V,30pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The SN74LVC1G08 is a 2-input AND gate which provides the Function Y = A × B. This device has power-down protective circuit to prevent device form destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.65V ~ 5.5V
- Low power current: lCC = 10μA(Max)
- ±24mA output drive (VCC = 3.0V)
- Power down protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
