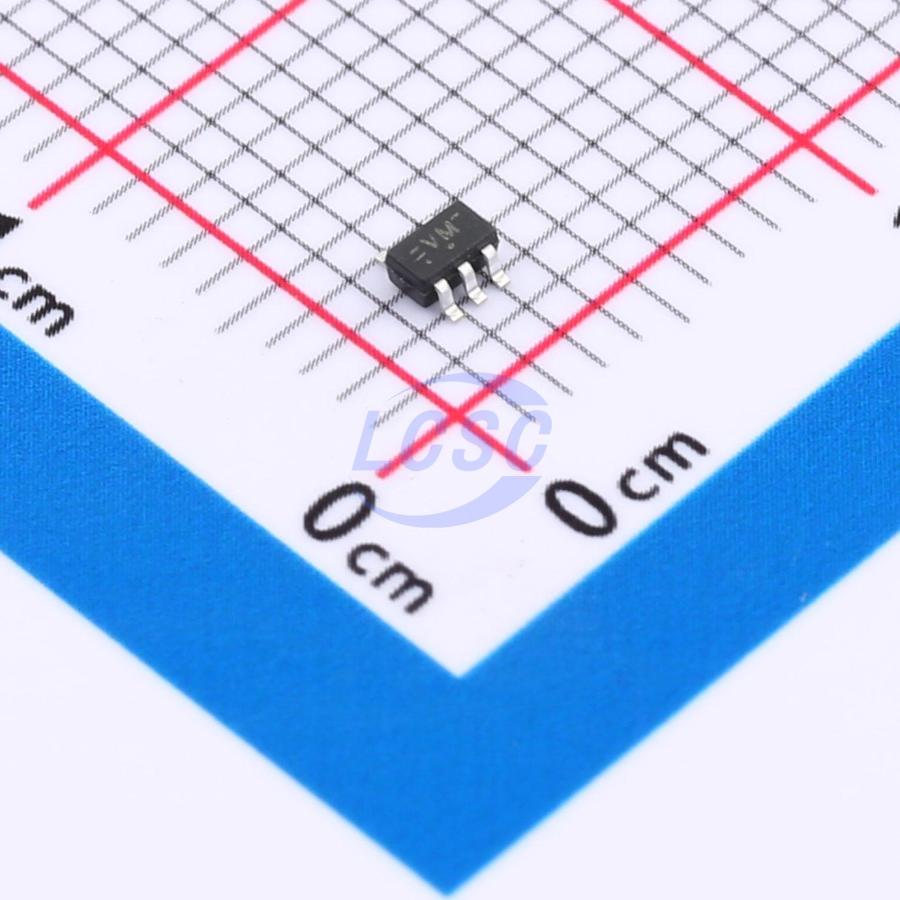

74LVC1G125GW-TP
1.65V~5.5V 1 1 3ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G125GW-TP
- Store part #
- C42394076
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,870 in stock
#C42394076
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.57 | ₹55.70 |
| 100+ | ₹4.42 | ₹442.00 |
| 300+ | ₹3.85 | ₹1,155.00 |
| 1,000+ | ₹3.41 | ₹3,410.00 |
| 5,000+ | ₹3.07 | ₹15,350.00 |
| 10,000+ | ₹2.90 | ₹29,000.00 |
10 × ₹5.57
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G125GW-TP
₹55.70 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC1G125 is a single bus buffer/line driver with 3 - state output. When the output enable (OE) is high the output will be disabled. In contrast, when the OE (overline) is low, true data will pass from A input to the Y output. This device has power - down protective circuit to prevent the device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu - ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Inputs Accept Voltages to 5.5V
- High Noise Immunity
- Low Power Dissipation
- ESD Protection Exceeds JESD 22
- 2000 - V Human - Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged - Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G125DCKR-TP#C42394074TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,640 | ₹5.48 · 1,640 in stock | View |
 | NL17SZ125DFT2G-TP#C42460266TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,950 | ₹9.75 · 2,950 in stock | View |
 | SN74LVC1G240DCKR#C42370550TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 4,590 | ₹11.50 · 4,590 in stock | View |
 | 74LVC1G240GW-TP#C42436999TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹14.47 · 2,980 in stock | View |
 | SN74LVC1G126DCKR-TP#C42460208TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,660 | ₹5.86 · 2,660 in stock | View |
