TECH PUBLICDatasheet (PDF)

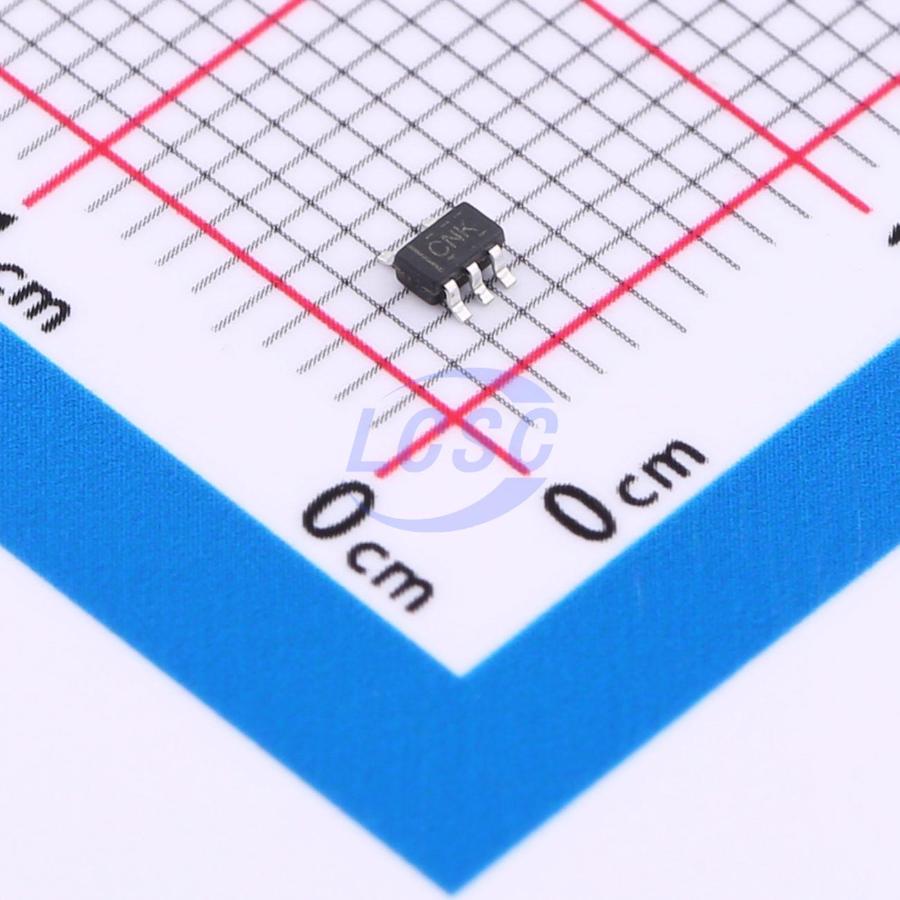

SN74LVC1G126DCKR-TP
1.65V~5.5V 1 1 9ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G126DCKR-TP
- Store part #
- C42460208
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C42460208
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.02 | ₹1,206.00 |
| 3,000+ | ₹3.56 | ₹10,680.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G126DCKR-TP
₹58.60 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The SN74LVC1G126DCKR-TP is a single buS buffer/line driver with 3-state output. When the output enable (OE) is high the output will be disabled. In contrast, when the OE is low, true data will pass from A input to the Y output. This device has power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- TV:LCD/Digital and High-Definition(HDTV)
- Tablet:Enterprise
- Video Analytics:Server
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Inputs Accept Voltages to 5.5V
- High Noise Immunity
- Low Power Dissipation
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G126GW-TP#C42460210TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,050 | ₹7.29 · 1,050 in stock | View |
 | 74LVC1G126SE-TP#C52098128TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.49 · 3,000 in stock | View |
 | 74LVC1G125SE-TP#C52098129TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,960 | ₹7.44 · 2,960 in stock | View |
 | SN74LVC1G240DCKR#C42370550TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 4,590 | ₹11.50 · 4,590 in stock | View |
 | SN74LVC1G125DCKR-TP#C42394074TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,640 | ₹5.48 · 1,640 in stock | View |
