74LVC1G125SE-7

1.65V~5.5V 1 1 2.1ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-353ROHS3 CompliantActive

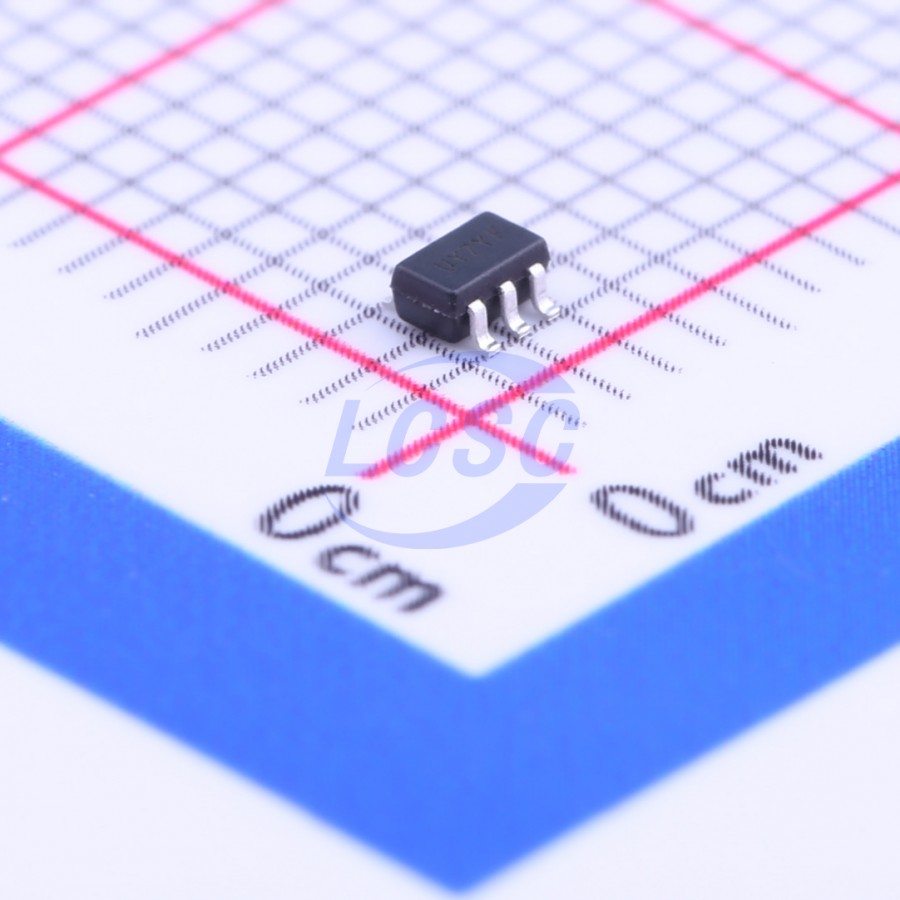

SINGLE BUFFER GATE WITH 3-STATE OUTPUT

Manufacturer: DIODES
Manufacturer part #: 74LVC1G125SE-7
Store part #: C151022
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,930 in stock

#C151022

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹9.22	₹92.20
100+	₹7.30	₹730.00
300+	₹6.35	₹1,905.00
3,000+	₹5.64	₹16,920.00
6,000+	₹5.07	₹30,420.00
9,000+	₹4.78	₹43,020.00

Quantity (min 10, multiples of 10)

10 × ₹9.22

₹92.20

excl. GST

₹108.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G125SE-7

₹92.20 for 10 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Output enable
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 2.1ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.122 g

Overview

The 74LVC1G125 is a single, non-inverting buffer/bus driver with a 3-state output. The output enters a high-impedance state when a HIGH-level is applied to the output enable OE(overline) pin. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V, allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such as:
PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers, Computer Peripherals, Hard Drives, CD/DVD ROMs
TVs, DVDs, DVRs, Set Top Boxes
Cell Phones, Personal Navigation / GPS, MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept Up to 5.5V
ESD Protection Tested per JESD 22 Exceeds 200-V Machine Model (A115) Exceeds 2000-V Human Body Model (A114) Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Direct Interface with TTL Levels
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
