onsemiDatasheet (PDF)
NC7SZ125P5X
1.65V~5.5V 1 1 2.1ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive

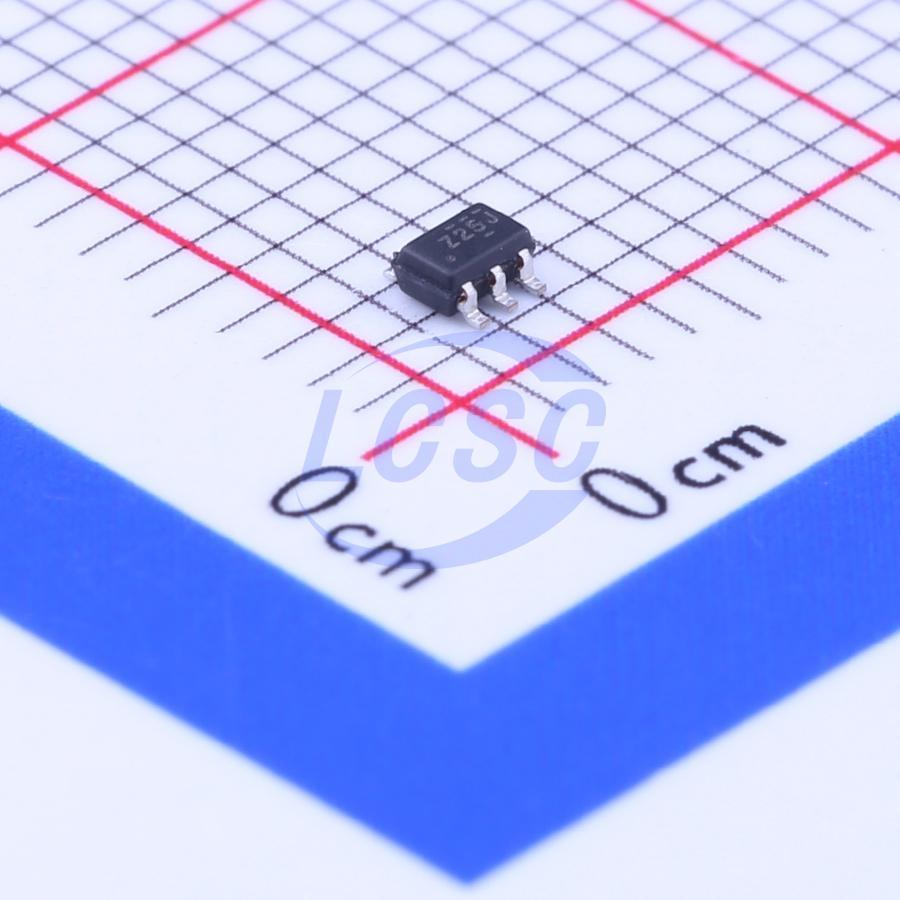

TinyLogic UHS Buffer with Three-State Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ125P5X
- Store part #
- C112084
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41,280 in stock
#C112084
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.52 | ₹65.20 |
| 100+ | ₹5.11 | ₹511.00 |
| 300+ | ₹4.40 | ₹1,320.00 |
| 3,000+ | ₹3.87 | ₹11,610.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.25 | ₹29,250.00 |
10 × ₹6.52
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ125P5X
₹65.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 7SZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.1ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The NC7SZ125 is a single buffer with three- state output from Fairchild's Ultra- High Speed (UHS) of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V range. The inputs and output are high impedance above ground when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage. The output tolerates voltages above VCC when in the 3- STATE condition.
Key features
- Ultra- High Speed: ±24 ns (Typical) into 50 pF at 5V VCC
- High Output Drive: ±24 mA at 3V VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Matches Performance of LCX Operated at 3.3V VCC
- Power Down High- Impedance Inputs/Outputs
- Over- Voltage Tolerance Inputs Facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra- Small MicroPakTM Packages
- Space- Saving SOT23 and SC70 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74LVC1G125GC353.TR#C3294718Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 360 | ₹10.76 · 360 in stock | View |
 | 74LVC1G125GW,125#C12519Nexperia · SOT-353 | Nexperia | SOT-353 | 45,425 | ₹13.07 · 45,425 in stock | View |
 | 74LVC1G125SE-7#C151022DIODES · SOT-353 | DIODES | SOT-353 | 1,930 | ₹7.67 · 1,930 in stock | View |
 | 74LVC1G126SE-7#C460528DIODES · SOT-353 | DIODES | SOT-353 | 2,000 | ₹7.77 · 2,000 in stock | View |
 | AIP74LVC1G126GC353.TR#C4945067Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 2,120 | ₹10.90 · 2,120 in stock | View |
