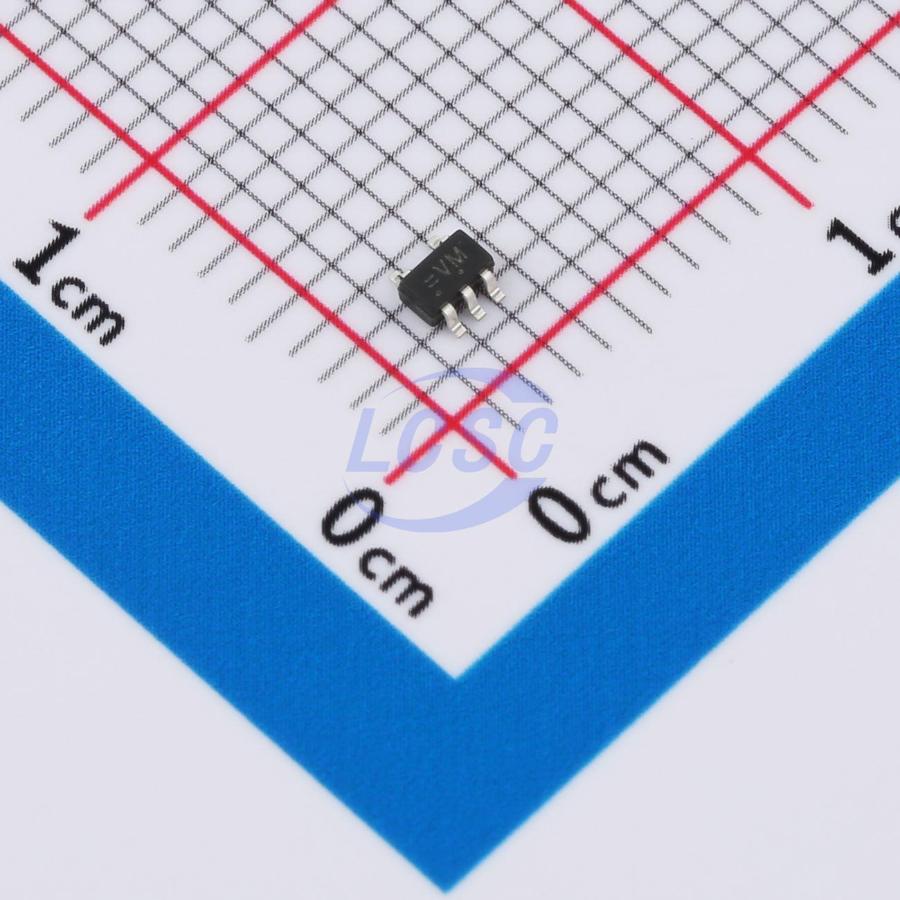

74LVC1G125SE-TP
1.65V~5.5V 1 1 9ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G125SE-TP
- Store part #
- C52098129
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C52098129
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G125SE-TP
₹74.40 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC1G125 is a single bus buffer/line driver with 3-state output. When the output enable (OE) is HIGH, the output is disabled. Conversely, when OE is LOW, true data is propagated from input A to output Y. The device features a power-down protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies: single controller: analog and digital
- SSDs: client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeding JESD 22: Human Body Model (A114-A) 2000V; Machine Model (A115-A) 200V; Charged Device Model (C101) 1000V
