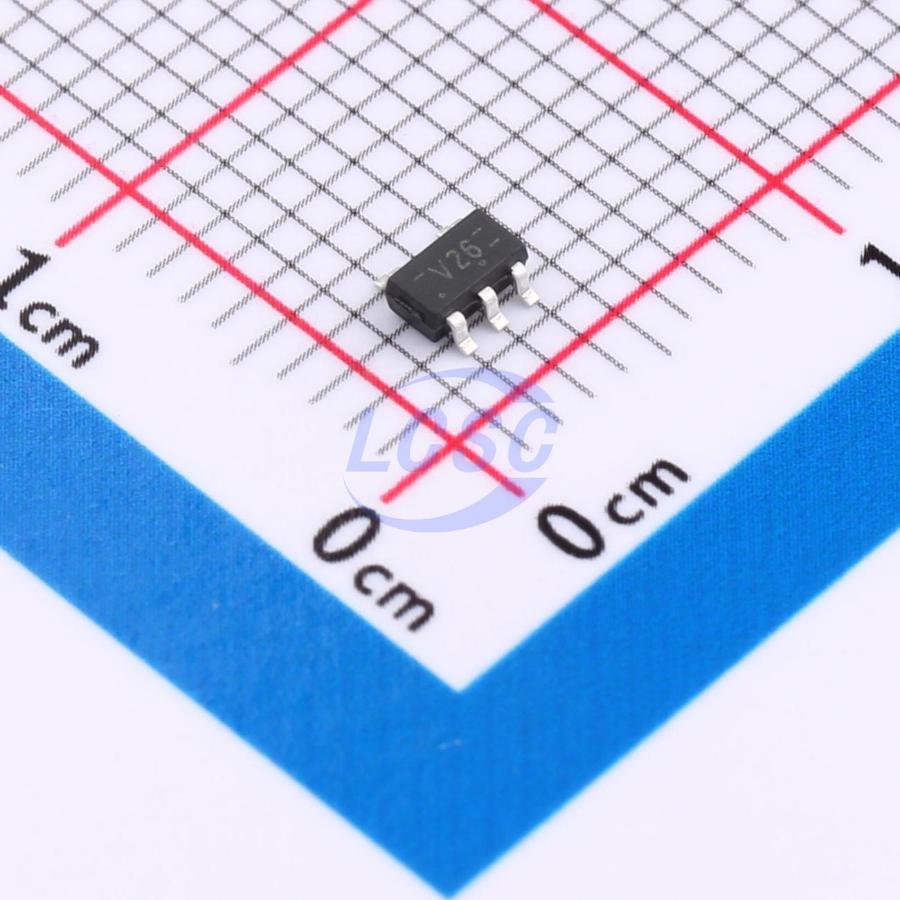

74LVC1G126GV-TP
1.65V~5.5V 1 1 0.5ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G126GV-TP
- Store part #
- C46472328
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C46472328
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.46 | ₹54.60 |
| 100+ | ₹4.27 | ₹427.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 3,000+ | ₹3.24 | ₹9,720.00 |
| 6,000+ | ₹2.90 | ₹17,400.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
10 × ₹5.46
₹54.60
excl. GST
₹64.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G126GV-TP
₹54.60 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 0.5ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC1G126GV-TP is a single bus buffer/line driver with 3-state output. When the output enable ( OE ) is high the output will be disabled. In contrast, when the OE is low, true data will pass from A input to the Y output. This device has power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- TV:LCD/Digital and High-Definition(HDTV)
- Tablet:Enterprise
- Video Analytics:Server
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Inputs Accept Voltages to 5.5V
- High Noise Immunity
- Low Power Dissipation
- ESD Protection Exceeds JESD 22
- -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7SZ126M5X-TP#C47117544TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,140 | ₹7.81 · 2,140 in stock | View |
 | TP74LVC1G126S5#C42460145TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,865 | ₹10.97 · 2,865 in stock | View |
 | SN74LVC1G126DBVR-TP#C46472327TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,270 | ₹4.43 · 15,270 in stock | View |
 | 74LVC1G126W5-TP#C52098141TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹6.95 · 2,960 in stock | View |
 | NC7SZ125M5X-TP#C42460214TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,330 | ₹7.57 · 1,330 in stock | View |
