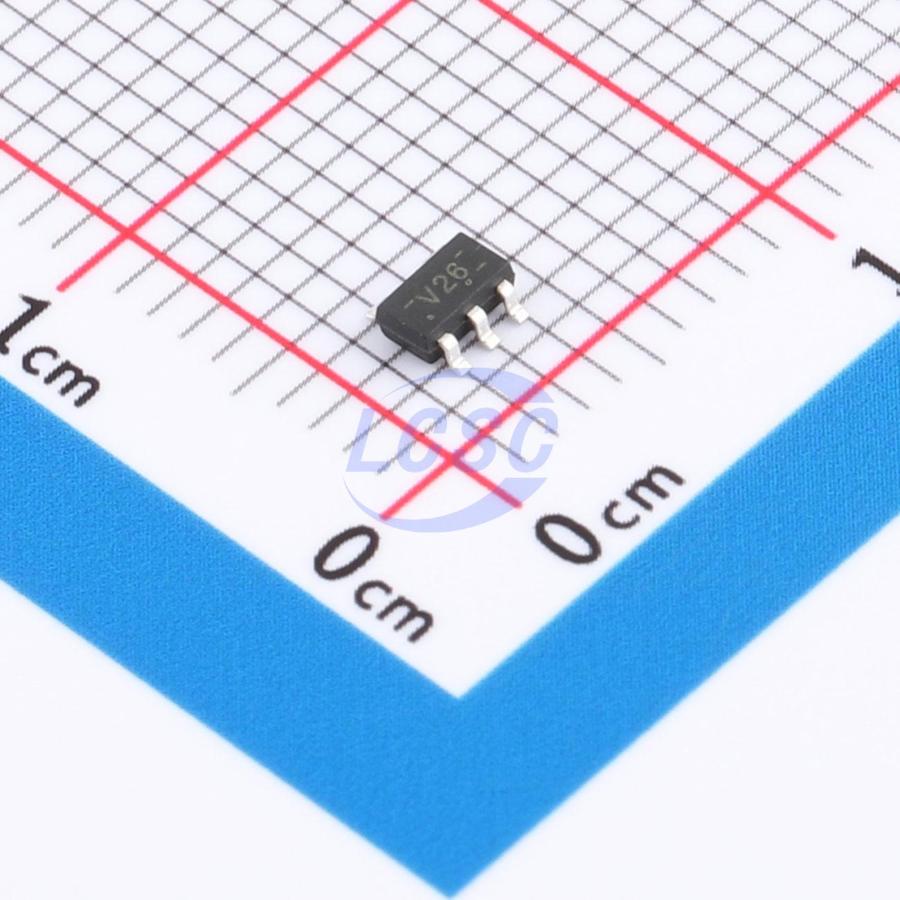

74LVC1G126W5-TP
1.65V~5.5V 1 1 9ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G126W5-TP
- Store part #
- C52098141
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C52098141
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.95 | ₹69.50 |
| 100+ | ₹5.46 | ₹546.00 |
| 300+ | ₹4.72 | ₹1,416.00 |
| 3,000+ | ₹4.17 | ₹12,510.00 |
| 6,000+ | ₹3.72 | ₹22,320.00 |
| 9,000+ | ₹3.51 | ₹31,590.00 |
10 × ₹6.95
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G126W5-TP
₹69.50 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC1G126W5-TP is a single bus buffer/line driver with tri-state output. When the output enable (OE) is high, the output is disabled. Conversely, when OE is low, true data is passed from the A input to the Y output. The device features a built-in power-down protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- TVs
- Tablet PCs
- Video analytics
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.65V to 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeding JESD 22: HBM (A114-A) 2000V, MM (A115-A) 200V, CDM (C101) 1000V
- Available in SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G126S5#C42460145TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,865 | ₹10.97 · 2,865 in stock | View |
 | SN74LVC1G126DBVR-TP#C46472327TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,270 | ₹4.43 · 15,270 in stock | View |
 | 74LVC1G126GV-TP#C46472328TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,430 | ₹5.46 · 2,430 in stock | View |
 | NC7SZ125M5X-TP#C42460214TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,330 | ₹7.57 · 1,330 in stock | View |
 | NC7SZ126M5X-TP#C47117544TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,140 | ₹7.81 · 2,140 in stock | View |
