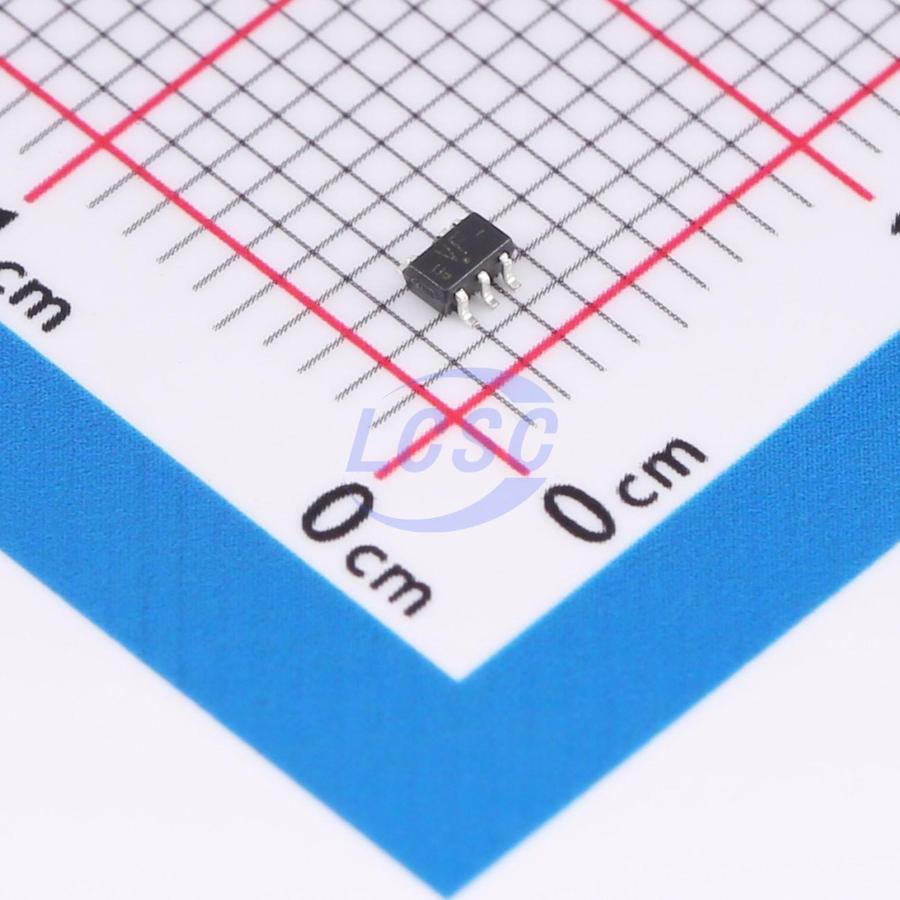

74LVC1G14GW,125

Schmitt trigger 1.65V~5.5V 6.5ns@5V,50pF 4uA 1 TSSOP-5 Gates and Inverters RoHS

TSSOP-5ROHS3 CompliantActive

Single Schmitt-trigger inverter

Manufacturer: Nexperia
Manufacturer part #: 74LVC1G14GW,125
Store part #: C265125
Package / case: TSSOP-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

53,720 in stock

#C265125

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
10+	₹9.53	₹95.30
100+	₹7.54	₹754.00
300+	₹6.54	₹1,962.00
3,000+	₹5.46	₹16,380.00
6,000+	₹4.87	₹29,220.00
9,000+	₹4.56	₹41,040.00

Quantity (min 10, multiples of 10)

10 × ₹9.53

₹95.30

excl. GST

₹112.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G14GW,125

₹95.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV~800mV
Propagation Delay: 6.5ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.14V~2.79V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 460mV~1.58V
Output Logic Level - High: 2.3V~3.8V
Quiescent Current(Iq): 4uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The 74LVC1G14 is a single inverter with Schmitt-trigger inputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.

Applications

Wave and pulse shaper
Astable multivibrator
Monostable multivibrator

Key features

Wide supply voltage range from 1.65 V to 5.5 V
Overvoltage tolerant inputs to 5.5 V
High noise immunity
CMOS low power dissipation
IOFF circuitry provides partial Power-down mode operation
±24 mA output drive (VCC = 3.0 V)
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
Unlimited rise and fall times
Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8C (2.7 V to 3.6 V) JESD36 (4.5 V to 5.5 V)
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
