74LVC1G14SE-7

Schmitt trigger 1.65V~5.5V 6.5ns@5V,50pF 200uA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

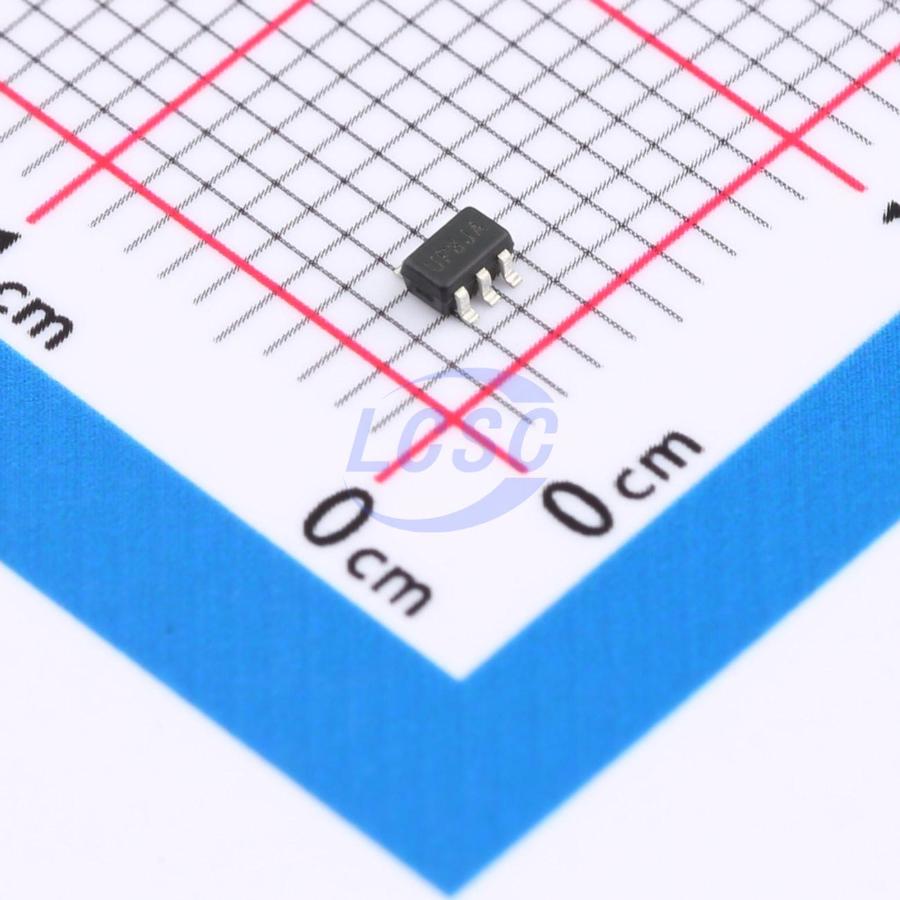

Single Schmitt-trigger Inverter

Manufacturer: DIODES
Manufacturer part #: 74LVC1G14SE-7
Store part #: C130459
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

505 in stock

#C130459

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.09	₹55.45
50+	₹8.94	₹447.00
150+	₹7.87	₹1,180.50
500+	₹7.06	₹3,530.00
3,000+	₹6.42	₹19,260.00
6,000+	₹6.10	₹36,600.00

Quantity (min 5, multiples of 5)

5 × ₹11.09

₹55.45

excl. GST

₹65.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G14SE-7

₹55.45 for 5 + GST

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 6.5ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.2V~3.33V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 300mV~1.45V
Quiescent Current(Iq): 200uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The 74LVC1G14 is a single 1-input Schmitt-trigger inverter with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed-voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A(overline)

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks, PDAs
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS, MP3 players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65V to 5.5V
±24 mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept Up to 5.5V
ESD Protection Exceeds JESD 22: 200-V Machine Model (A115), 2000-V Human Body Model (A114)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
