MDD(Microdiode Semiconductor)Datasheet (PDF)

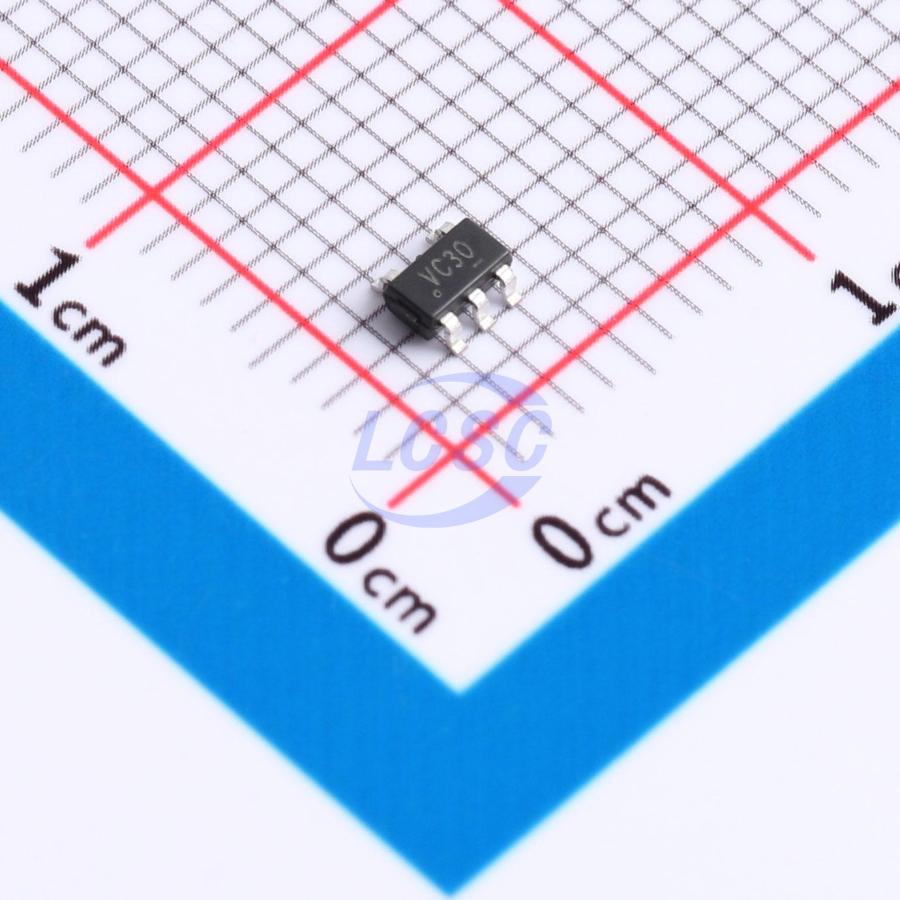

74LVC1G17GV
Schmitt trigger 1.65V~5.5V 1 1 4.8ns@5.5V,50pF SOT-23-5L Buffers, Drivers, Receivers, Transceivers
SOT-23-5LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G17GV
- Store part #
- C52140411
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,374 in stock
#C52140411
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹11.83 | ₹11.83 |
| 10+ | ₹9.33 | ₹93.30 |
| 30+ | ₹8.07 | ₹242.10 |
| 100+ | ₹7.13 | ₹713.00 |
| 500+ | ₹6.39 | ₹3,195.00 |
| 1,000+ | ₹6.01 | ₹6,010.00 |
1 × ₹11.83
₹11.83
excl. GST
₹13.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G17GV
₹11.83 for 1 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.8ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The 74LVC1G17 is a single buffer Schmitt trigger. Its input can be driven by 3.3V or 5V devices, enabling it to function as a level translator in mixed 3.3V/5V environments. The device is fully specified for partial power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuitry disables the output when the device is powered down, preventing potentially damaging backflow current from flowing through the device.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- High noise immunity
- ±24 mA output drive capability (at VCC = 3.0 V)
- CMOS low power consumption
- Latch-up performance exceeds 100mA
- Direct TTL-level interface compatible
- IOFF circuitry enables partial power-down mode operation
- Unrestricted rise and fall times
- Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8B/JESD36 (2.7V to 3.6V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
