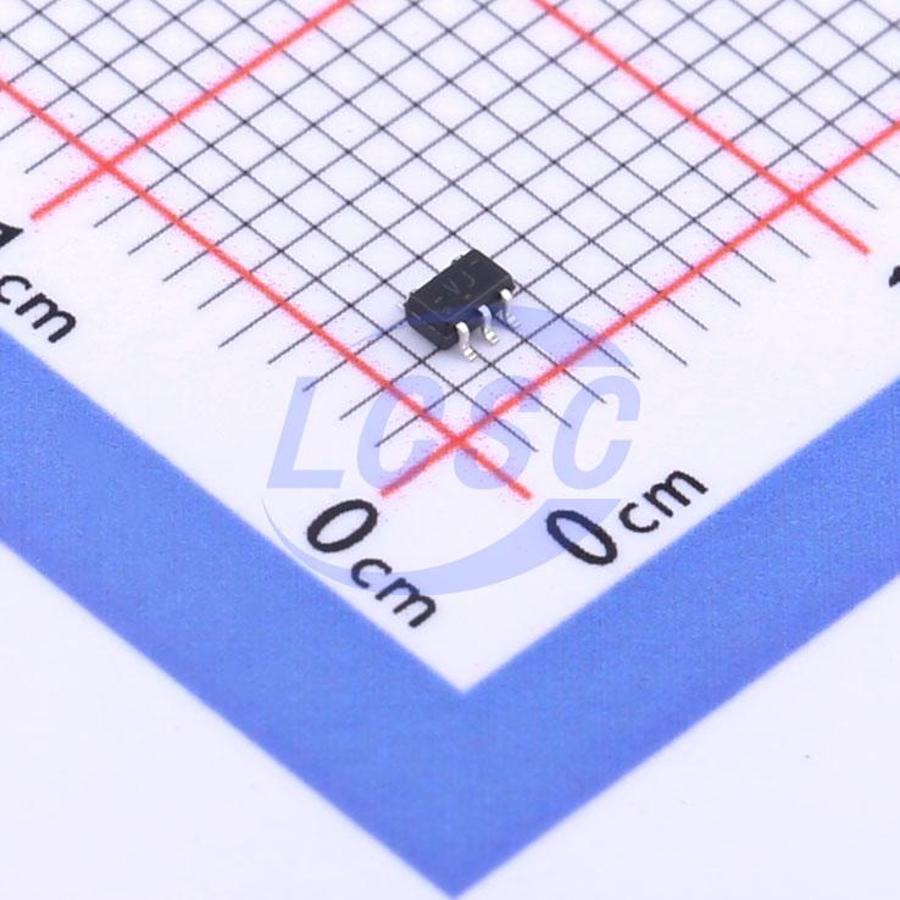

74LVC1G17GW,125
Schmitt trigger 1.65V~5.5V 1 1 3ns@3.3V,50pF TSSOP-5-1.3mm Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-5-1.3mmROHS3 CompliantActive
Single Schmitt trigger buffer
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1G17GW,125
- Store part #
- C426705
- Package / case
- TSSOP-5-1.3mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,265 in stock
#C426705
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.54 | ₹72.70 |
| 50+ | ₹11.50 | ₹575.00 |
| 150+ | ₹9.98 | ₹1,497.00 |
| 500+ | ₹8.82 | ₹4,410.00 |
| 3,000+ | ₹7.77 | ₹23,310.00 |
| 6,000+ | ₹7.30 | ₹43,800.00 |
5 × ₹14.54
₹72.70
excl. GST
₹85.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G17GW,125
₹72.70 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Push-pull
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The 74LVC1G17 is a single buffer Schmitt-trigger. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Applications
- Voltage translation in mixed 3.3V and 5V environments
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- IOFF circuitry provides partial Power-down mode operation
- ±24 mA output drive (VCC = 3.0 V)
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Unlimited rise and fall times
- Complies with JEDEC standard:
- JESD8 - 7 (1.65 V to 1.95 V)
- JESD8 - 5 (2.3 V to 2.7 V)
- JESD8C (2.7 V to 3.6 V)
- JESD36 (4.5 V to 5.5 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G17GW#C52140427MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 2,450 | ₹12.49 · 2,450 in stock | View |
 | 74LVC1G17QSE-7#C6833523DIODES · SOT-353 | DIODES | SOT-353 | 105 | ₹20.52 · 105 in stock | View |
 | 74LVC1G17SE-7#C212314DIODES · SOT-353 | DIODES | SOT-353 | 5,360 | ₹9.68 · 5,360 in stock | View |
 | 74LVC1G17SE-TP#C52098132TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,090 | ₹5.85 · 3,090 in stock | View |
 | SN74LVC1G17DCKT#C99261TI · SC-70-5 | TI | SC-70-5 | 185 | ₹40.35 · 185 in stock | View |
