MDD(Microdiode Semiconductor)Datasheet (PDF)

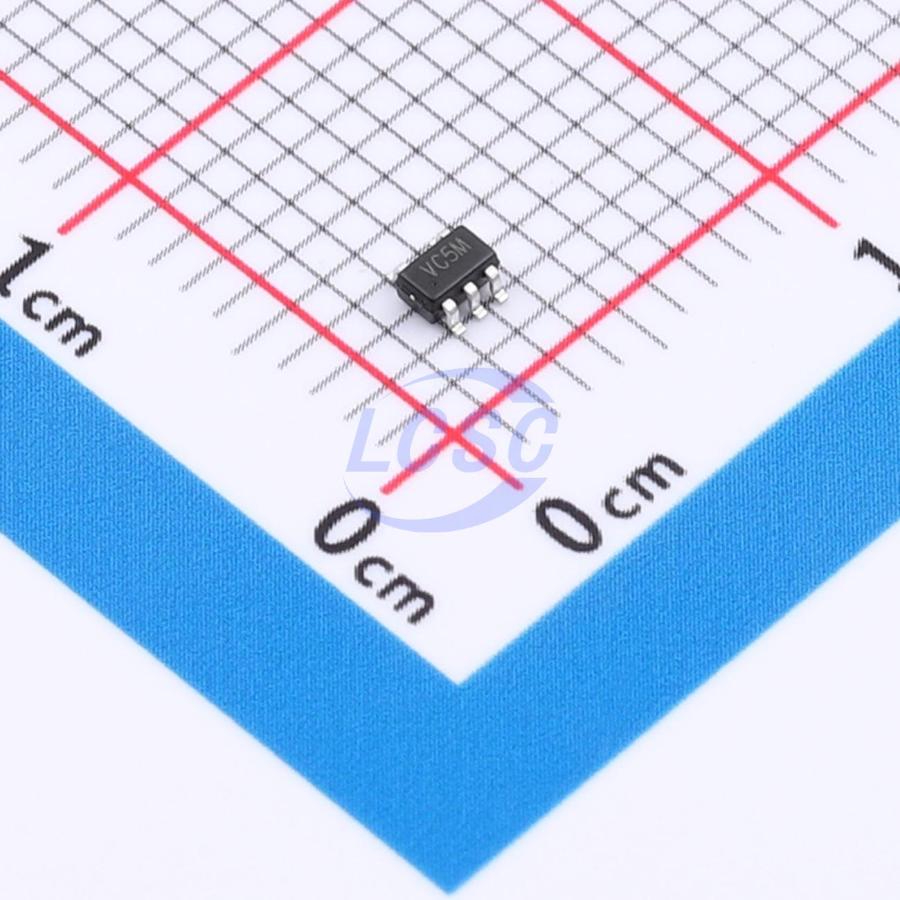

74LVC1G17GW
Schmitt trigger 1.65V~5.5V 1 1 3ns@3.3V SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G17GW
- Store part #
- C52140427
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C52140427
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.49 | ₹12.49 |
| 10+ | ₹9.84 | ₹98.40 |
| 30+ | ₹8.52 | ₹255.60 |
| 100+ | ₹7.53 | ₹753.00 |
| 500+ | ₹6.73 | ₹3,365.00 |
| 1,000+ | ₹6.34 | ₹6,340.00 |
1 × ₹12.49
₹12.49
excl. GST
₹14.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G17GW
₹12.49 for 1 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Push-pull
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.075 g
Overview
The 74LVC1G17 is a single buffer Schmitt trigger. Its input can be driven by 3.3V or 5V devices, allowing it to function as a level translator in mixed 3.3V/5V supply environments. The device is fully specified for partial power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuitry disables the output when the device is powered down, preventing damaging reverse current flow through the device.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- High noise immunity
- ±24mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 100mA
- Direct TTL-level interface capability
- IOFF circuitry enables partial power-down mode operation
- Unrestricted rise and fall times
- Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8B/JESD36 (2.7V to 3.6V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
