MSKSEMIDatasheet (PDF)

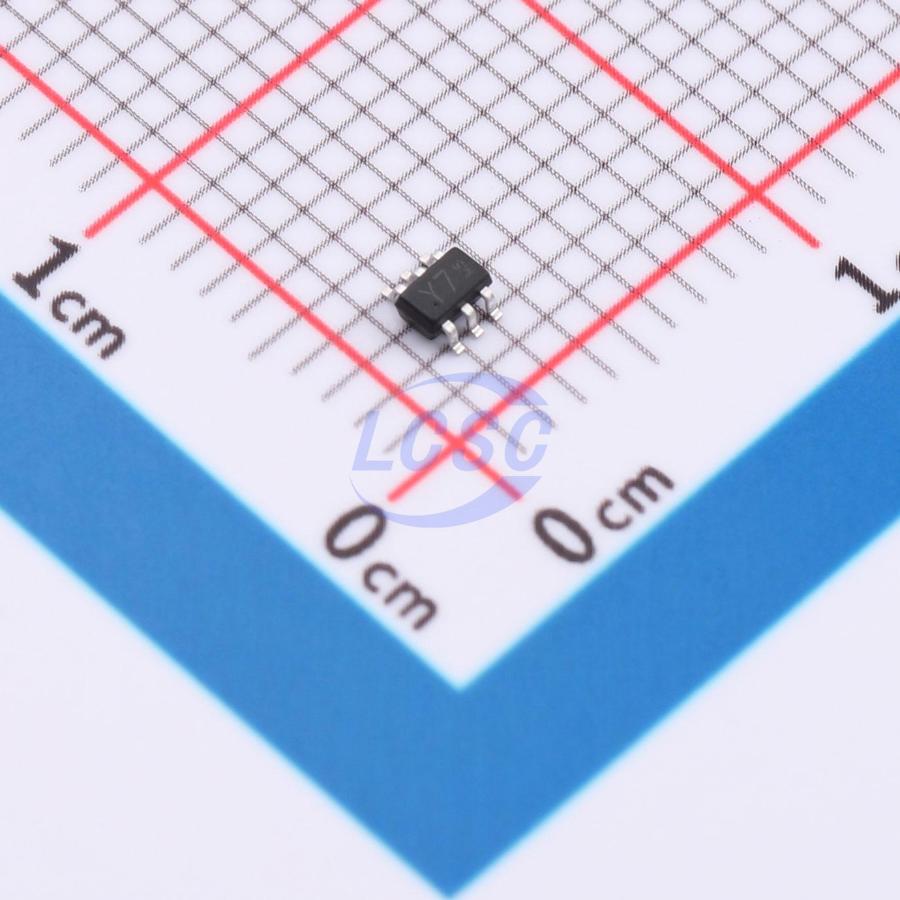

74LVC1G27GW-MS
10uA 1.65V~5.5V 5.4ns@3.3V,50pF SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- 74LVC1G27GW-MS
- Store part #
- C52988864
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,595 in stock
#C52988864
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.76 | ₹53.80 |
| 50+ | ₹8.56 | ₹428.00 |
| 150+ | ₹7.47 | ₹1,120.50 |
| 500+ | ₹6.65 | ₹3,325.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
5 × ₹10.76
₹53.80
excl. GST
₹63.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G27GW-MS
₹53.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Features
- Local shutdown mode
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 5.4ns@3.3V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This single 3-input positive-NOR gate is designed for V CC operating voltages from 1.65 V to 5.5 V. The 74LVC1G27GW-MS/74LVC1G27GV-MS devices perform the Boolean function Y = A+B+C (overline) or Y = Ā·B̄·C̄ (positive logic). This CMOS device provides high output drive capability while maintaining low quiescent power consumption across a wide V CC operating voltage range. The device is fully specified for partial power-down applications using I off. The I off circuit prevents damaging current backflow through the device when the gate is powered down and its outputs are floating.
Applications
- Personal digital assistants
- AV receivers
- MP3 players/recorders
- Solid-state drives
- Power supplies
- Televisions
Key features
- Operating voltage range: 1.65 V to 5.5 V
- 5 V VCC operation supported
- Specified operating temperature range: -40°C to 85°C
- Down voltage translation to V CC provided
- Maximum propagation delay of 5.4 ns at 3.3 V
- ±24 mA output drive capability at 3.3 V
