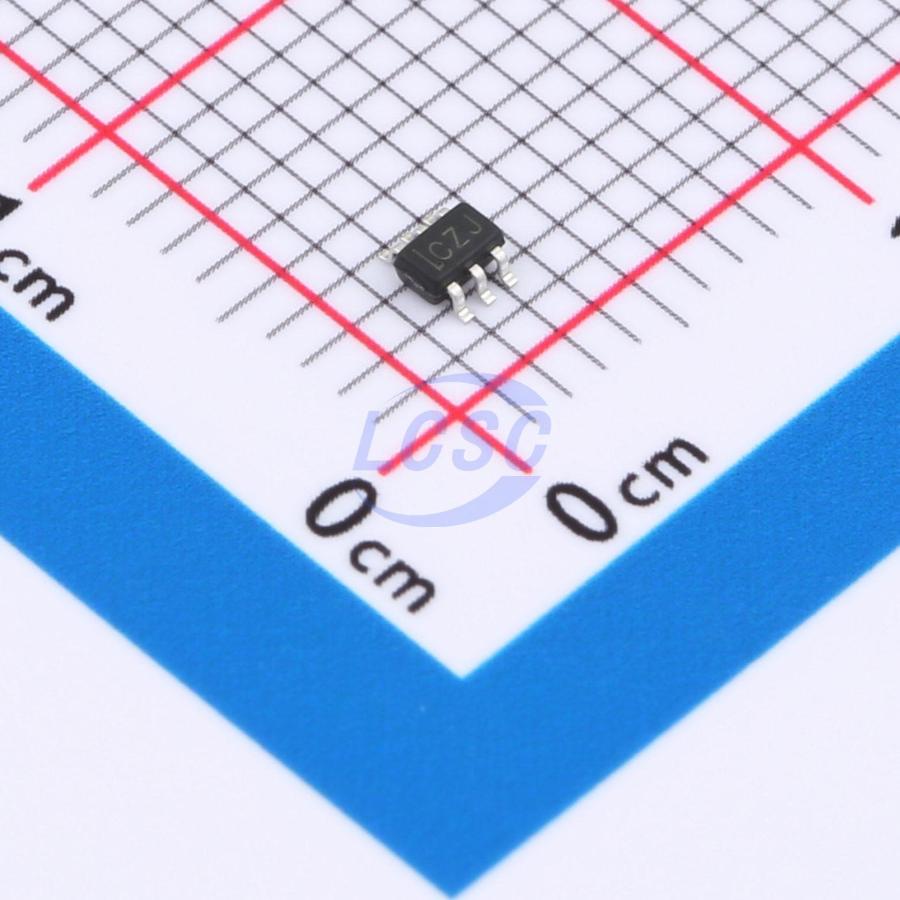

SN74LVC1G332DCKR-MS
1.65V~5.5V 5.4ns@3.3V,50pF 10uA SC-70-6 Gates and Inverters
SC-70-6RoHSActive
Single 3-input positive NOR gate
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G332DCKR-MS
- Store part #
- C30602460
- Package / case
- SC-70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C30602460
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.45 | ₹94.50 |
| 100+ | ₹7.46 | ₹746.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 1,000+ | ₹5.74 | ₹5,740.00 |
| 5,000+ | ₹5.15 | ₹25,750.00 |
| 10,000+ | ₹4.84 | ₹48,400.00 |
10 × ₹9.45
₹94.50
excl. GST
₹111.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G332DCKR-MS
₹94.50 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;300mV;400mV;450mV;550mV
- Propagation Delay
- 5.4ns@3.3V,50pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 3;1
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This single 3-input positive-NOR gate is designed for 1.65-V to 5.5-V Vcc operation. The SN74LVC1G332 device performs the Boolean function Y = A + B + C Y = A ⋅ B ⋅ C in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. This device is fully specified for partial-power-down applications using lof. The loff circuitry prevents damaging current backflow through the device when the gate is powered down and its output is floating.
Applications
- Personal digital assistant devices
- AV receiver
- MP3 player/recorder
- Solid state drive (SSD): client and enterprise
- Power: telecom/server AC/DC supply
- TV: LCD/digital and high-definition (HDTV)
Key features
- Operate from 1.65 V to 5.5V
- Supports 5-V VCC operation
- Specified from -40 °C to 125 °C
- Provides down translation to Vcc
- Max tpd of 5.4 ns at 3.3 V
- ±24 mA output drive at 3.3 V
