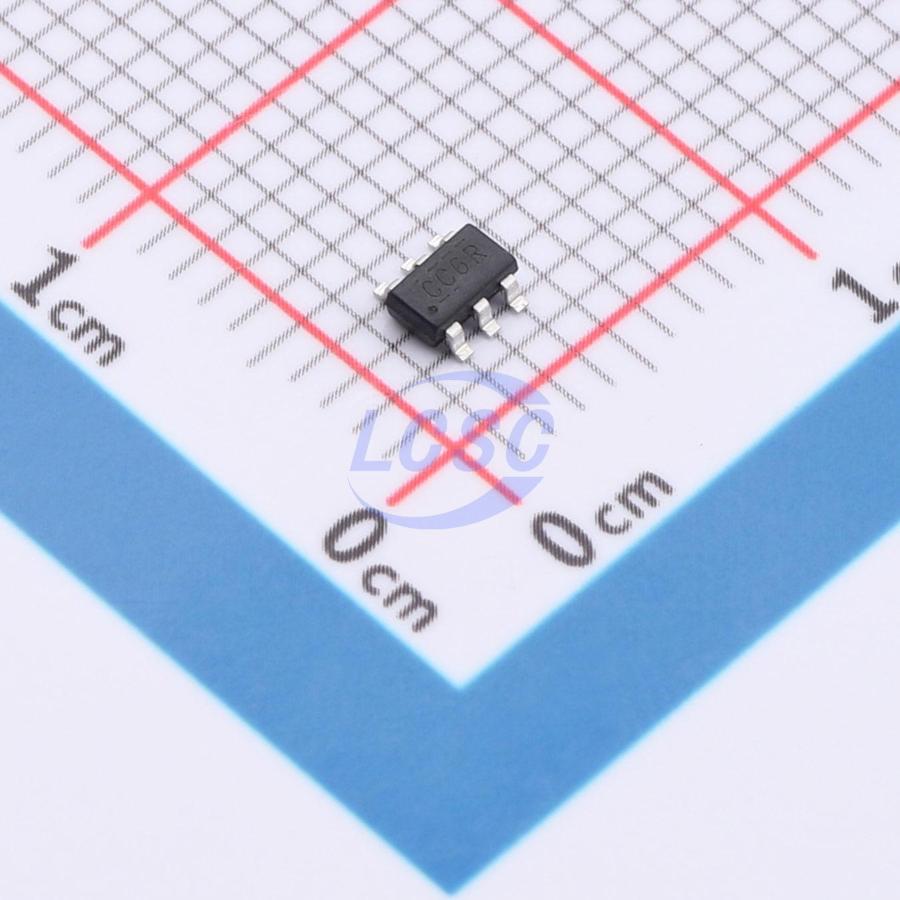

74LVC1G386GV-TP
1.65V~5.5V 6ns@5V,50pF 10uA SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G386GV-TP
- Store part #
- C51939530
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C51939530
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.69 | ₹53.45 |
| 50+ | ₹8.40 | ₹420.00 |
| 150+ | ₹7.26 | ₹1,089.00 |
| 500+ | ₹6.42 | ₹3,210.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.38 | ₹32,280.00 |
5 × ₹10.69
₹53.45
excl. GST
₹63.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G386GV-TP
₹53.45 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 6ns@5V,50pF
- Output Logic Level - Low
- 800mV
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode;Rear drive protection
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 3;1
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The 74LVC1G386GV-TP performs the Boolean function Y = A ⊕ B ⊕ C in positive logic. The device is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down.
Applications
- AV receivers
- Audio docking stations
- Portable Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies
Key features
- Wide supply voltage range: 1.65V ~ 5.5V, supports 5V VCC operation
- IOFF supports back-drive protection in partial power-down mode
- Low power consumption, ICC = 10μA (max)
- ESD protection exceeds JESD 22: HBM 2000-V (A114-A), MM 200-V (A115-A), CDM 1000-V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G386DBVR-TP#C51939613TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,975 | ₹10.72 · 2,975 in stock | View |
 | TP74LVC1G386S6#C51939628TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,200 | ₹12.85 · 2,200 in stock | View |
