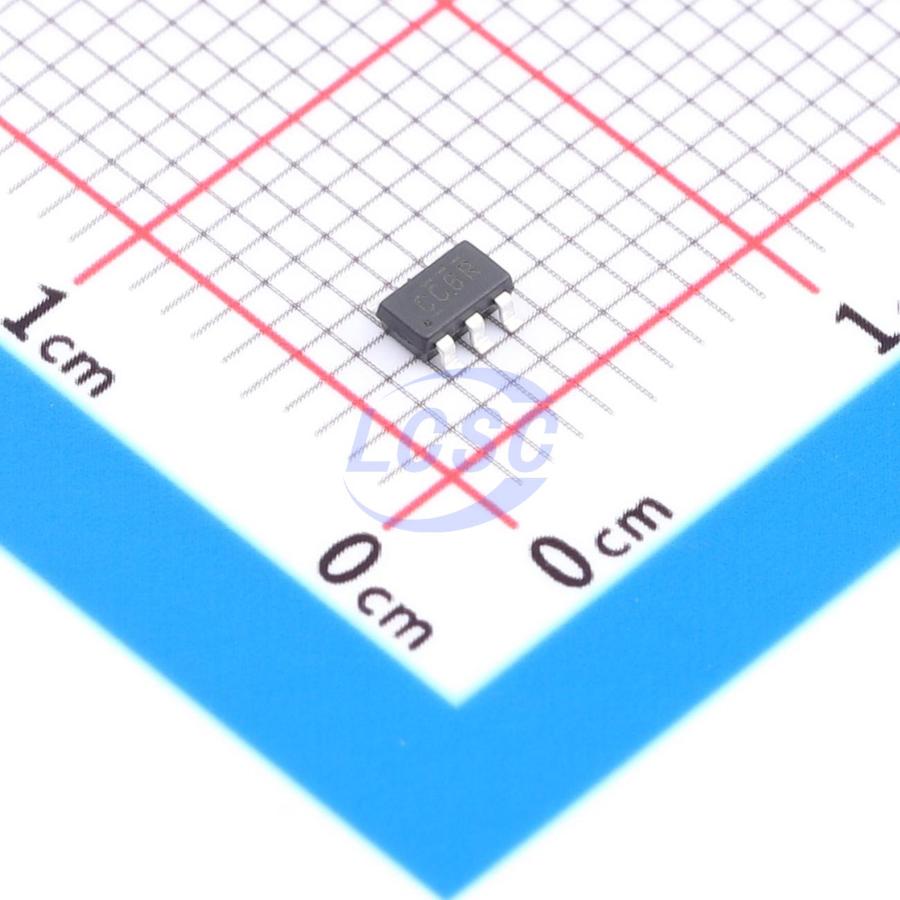

TECH PUBLICDatasheet (PDF)
TP74LVC1G386S6
1.65V~5.5V 6ns@5V,50pF 10uA SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G386S6
- Store part #
- C51939628
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C51939628
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.85 | ₹64.25 |
| 50+ | ₹10.16 | ₹508.00 |
| 150+ | ₹8.82 | ₹1,323.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 3,000+ | ₹7.01 | ₹21,030.00 |
| 6,000+ | ₹6.62 | ₹39,720.00 |
5 × ₹12.85
₹64.25
excl. GST
₹75.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G386S6
₹64.25 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 6ns@5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode;Rear drive protection
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The TP74LVC1G386 device implements the Boolean function Y = A ⊕ B ⊕ C using positive logic. This device is fully specified for partial power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow when the device is powered down.
Applications
- AV receivers
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V VCC operation supported
- Ioff for back-drive protection in partial power-down mode
- Low power consumption, ICC = 10μA (maximum)
- ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
