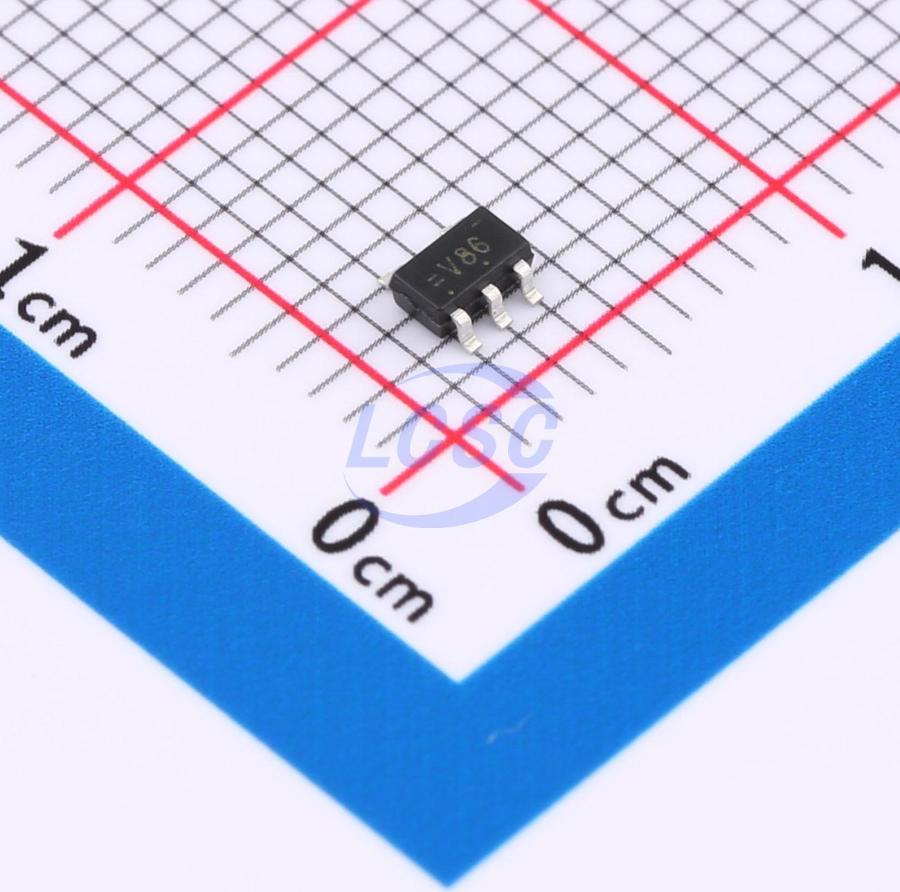

74LVC1G86GV
10uA 1.65V~5.5V 4ns@3.3V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT EXCLUSIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G86GV
- Store part #
- C19829595
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C19829595
Stock & price checked 14 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.21 | ₹72.10 |
| 100+ | ₹5.74 | ₹574.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹4.01 | ₹24,060.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.21
₹72.10
excl. GST
₹85.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G86GV
₹72.10 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 4ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC1G86 is a single 2-input EXCLUSIVE-OR gate which provides the Function Y = A⊕B or Y = AB(overline) + AB(overline) in positive logic. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers, Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box, Cell Phones, Personal Navigation / GPS, MP3 Players, Cameras, Video Recorders
Key features
- Operate from 1.65V to 5.5V
- Inputs accept voltages to 5.5V
- lorr supports partial-power-down mode
- Low power dissipation
- Max tpD of 4 ns at 3.3V
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
