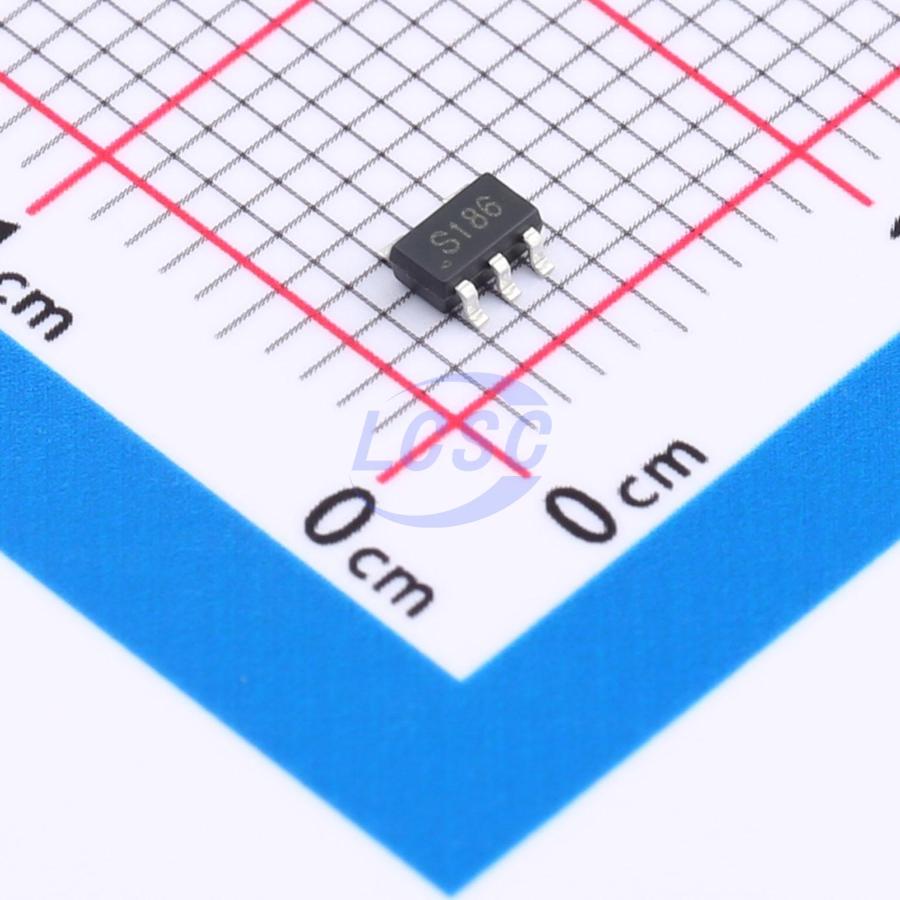

TP74LVC1G86S5

10uA 1.65V~5.5V 3.3ns@5V,50pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

SINGLE 2-INPUT EXCLUSIVE-OR GATE

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74LVC1G86S5
Store part #: C42460141
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,740 in stock

#C42460141

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.44	₹74.40
100+	₹5.91	₹591.00
300+	₹5.16	₹1,548.00
1,000+	₹4.59	₹4,590.00
5,000+	₹4.13	₹20,650.00
10,000+	₹3.90	₹39,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.44

₹74.40

excl. GST

₹87.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74LVC1G86S5

₹74.40 for 10 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Logic Family: 74LVC
Input Logic Level - High: 1.7V;2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 3.3ns@5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

The is a single 2-input EXCLUSIVE-OR gate which provides the Function Y = A ⊕ B or Δ = A(overline)B + A B(overline) in positive logic. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. This device is fully specified for partial Power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
Embedded PC
Personal Digital Assistant(PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive(SSD): Client and Enterprise
Wireless Headset, Keyboard, and Mouse

Key features

Operate from 1.65V to 5.5V
Inputs accept voltages to 5.5V
loFF supports partial-power-down mode
Low power dissipation
ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
