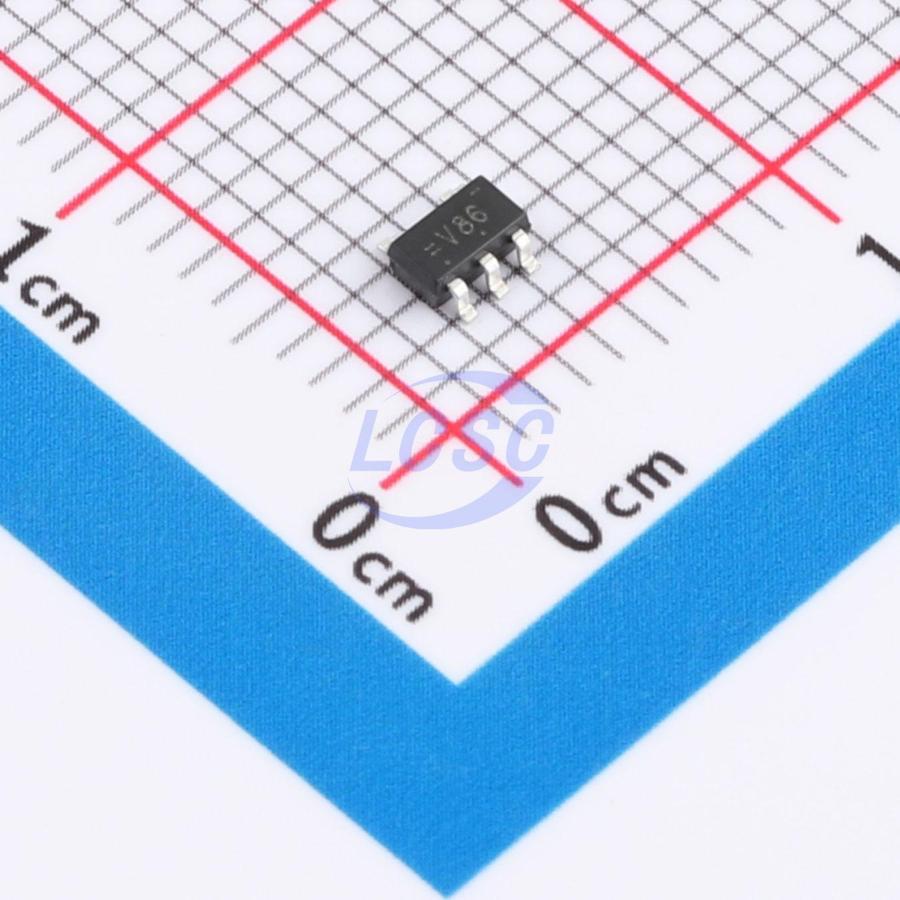

74LVC1G86W5-TP

10uA 1.65V~5.5V 5ns@3.3V,50pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G86W5-TP
Store part #: C52098143
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,870 in stock

#C52098143

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.85	₹58.50
100+	₹4.59	₹459.00
300+	₹3.97	₹1,191.00
3,000+	₹3.51	₹10,530.00
6,000+	₹3.14	₹18,840.00
9,000+	₹2.95	₹26,550.00

Quantity (min 10, multiples of 10)

10 × ₹5.85

₹58.50

excl. GST

₹69.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G86W5-TP

₹58.50 for 10 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Logic Family: 74LVC
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Propagation Delay: 5ns@3.3V,50pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

The 74LVC1G86 is a single 2-input XOR gate that provides the function Y = A XOR B or Y = (A AND NOT B) OR (NOT A AND B) in positive logic. The device operates from a 1.65V to 5.5V supply voltage, with inputs that accept voltages up to 5.5V. This feature enables use in mixed 3.3V and 5V voltage environments. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuit disables the outputs when the device is powered down, preventing damaging reverse current from flowing through the device.

Applications

Voltage level translation
General-purpose logic
Power-off signal isolation
PCs, network equipment, laptops, netbooks, PDAs
Tablets, e-readers
Computer peripherals, HDDs, CD/DVD drives
TVs, DVDs, DVRs, set-top boxes
Mobile phones, personal navigation/GPS devices
MP3 players, cameras, camcorders

Key features

Operating voltage range: 1.65V to 5.5V
Inputs tolerant up to 5.5V
I_OFF supports partial power-down mode
Low power consumption
Maximum propagation delay of 4 ns at 3.3V
ESD protection exceeds JESD 22 standard
Human Body Model: 2000 V (A114-A)
Charged Device Model: 1000 V (C101)
Available in SOT23-5 package
Available in SOT353 package
