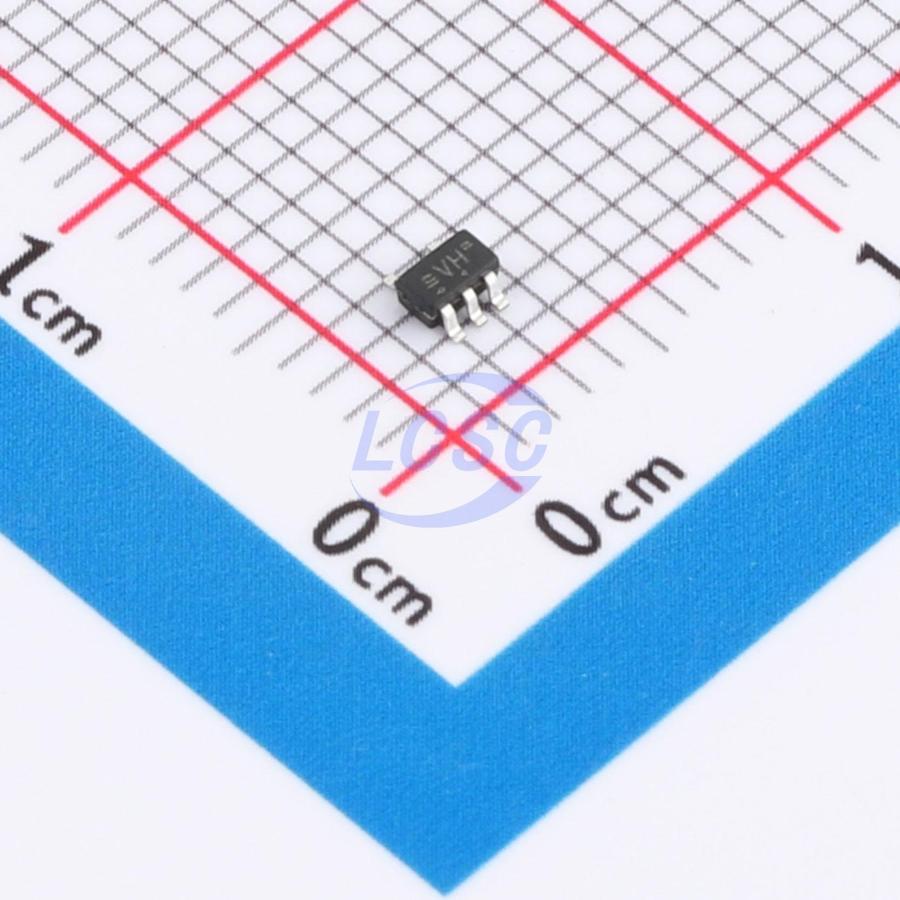

74LVC1G86SE-TP
10uA 1.65V~5.5V 5ns@3.3V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G86SE-TP
- Store part #
- C52098130
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C52098130
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G86SE-TP
₹58.90 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 5ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC1G86 is a single 2-input XOR gate implementing the positive-logic function Y=A⊕B or Y=A'B+AB'. Its inputs are compatible with 3.3V or 5V device drive levels, making it suitable for mixed 3.3V/5V voltage environments. The device fully supports partial power-down applications using the I_OFF feature. The I_OFF circuitry disables the outputs when the device is powered down, preventing damaging reverse current flow.
Applications
- Voltage level translation
- General-purpose logic
- Power-off signal isolation
Key features
- Operating voltage range: 1.65V to 5.5V
- Inputs tolerate voltages up to 5.5V
- I_OFF supports partial power-down operation
- Low power consumption
- Maximum propagation delay of 4ns at 3.3V supply
- ESD protection exceeds JESD 22 standard
- HBM rating: 2000V (per A114-A)
- CDM rating: 1000V (per C101)
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G86GW#C19829656TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,150 | ₹7.30 · 3,150 in stock | View |
 | SN74LVC1G86DCKR#C19829633TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,320 | ₹6.71 · 2,320 in stock | View |
 | NL17SZ86DFT2G-TP#C42460265TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,880 | ₹6.39 · 2,880 in stock | View |
 | TC7S86FU-TP#C54195004TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
 | TP74LVC1G86C5#C42460142TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,960 | ₹7.44 · 2,960 in stock | View |
