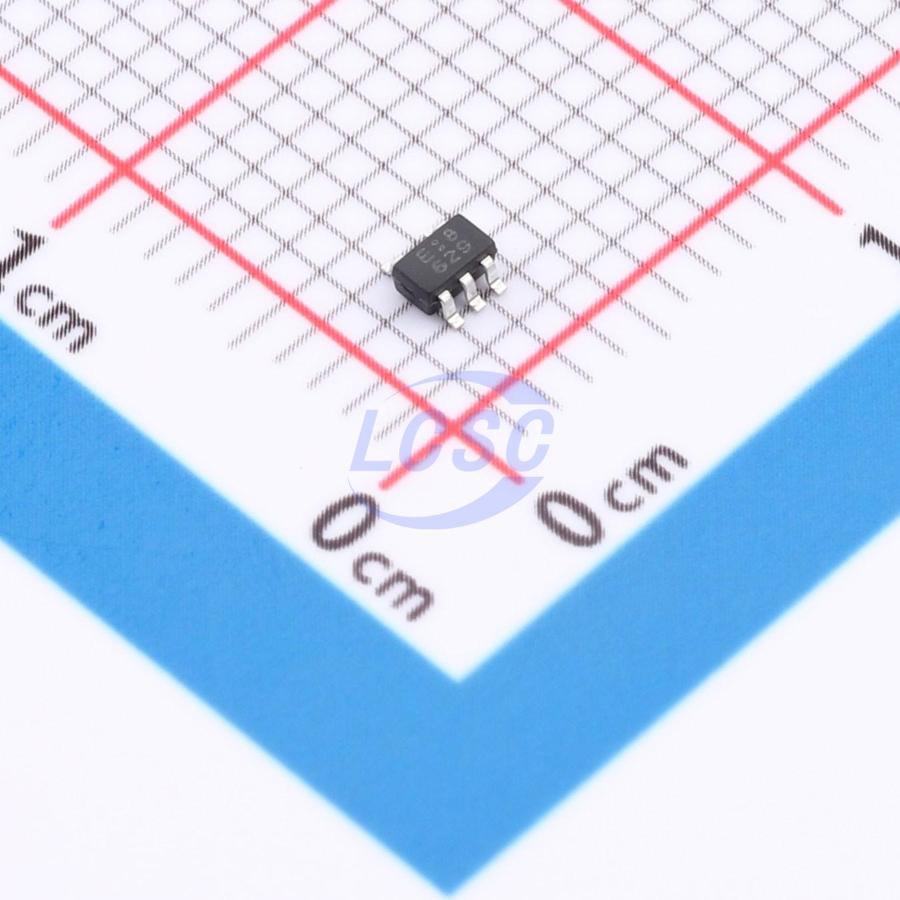

TC7S86FU-TP

The TC7S86 is a single 2-input XOR gate. The device is designed for operation with Vcc ranging from 1.65 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7S86 performs the Boolean function Y = A'B + AB' in positive logic. If one input is low, the signal on the other input appears at the output in its true form. If one input is high, the signal on the other input appears at the output in inverted form. The device features low power consumption, with a maximum propagation delay (TPD) of 4.0 ns at 3.3 V and a 15 pF capacitive load. This CMOS device provides strong output drive capability across a wide Vcc operating range while maintaining low quiescent power consumption. The TC7S86 is available in SOT23-5 and SOT353 packages.

Applications

• Active Noise Cancellation (ANC)
• Blood Pressure Monitor
• Embedded PC
• SSD: Client and Enterprise
• TV: LCD/Digital and HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard and Mouse
• Power Supply: Telecom/Server AC/DC Controller

Key features

• Wide supply voltage range: 1.65 V to 5.5 V
• Maximum propagation delay (TpD) of 4.0 ns at VCC = 3.3 V
• Low power consumption, maximum quiescent current (Icc) of 10 μA
• Output drive capability of ±24 mA at VCC = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• Human Body Model (A114-A): 2000 V
• Charged Device Model (C101): 1000 V
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
