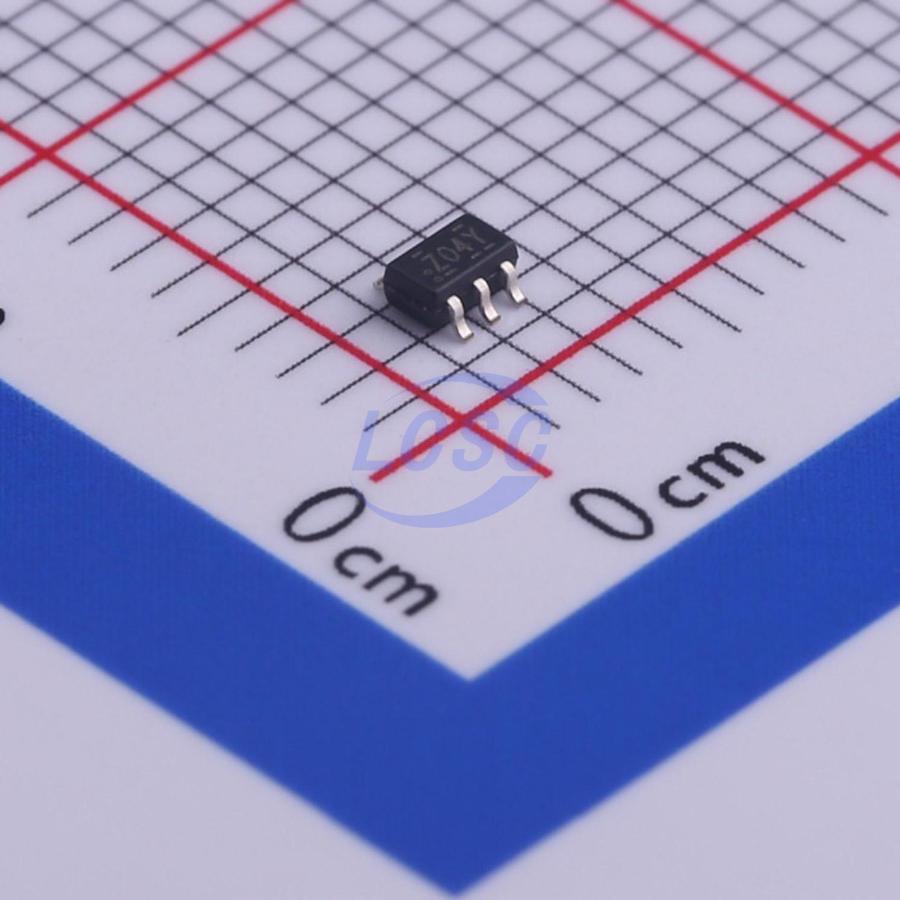

TinyLogic UHs Dual Inverter

Manufacturer: onsemi
Manufacturer part #: NC7WZ04P6X
Store part #: C457618
Package / case: SC-70-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,640 in stock

#C457618

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹11.34	₹56.70
50+	₹8.94	₹447.00
150+	₹7.74	₹1,161.00
500+	₹6.84	₹3,420.00
3,000+	₹6.13	₹18,390.00
6,000+	₹5.77	₹34,620.00

Quantity (min 5, multiples of 5)

5 × ₹11.34

₹56.70

excl. GST

₹66.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7WZ04P6X

₹56.70 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 7WZ
Input Type: StandardCMOS
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;240mV;300mV;400mV;550mV
Propagation Delay: 3.6ns@5V,50pF
Features: Power shutdown protection
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 1.55V;1.7V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

The NC7WZ04 is a dual inverter from ON Semiconductor’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC range. The inputs tolerate voltages up to 5.5 V independent of VCC operating voltage.

Applications

5V to 3V level shifting
High-speed, high output drive applications
Wide Vcc operating range
Noise/EMI sensitive applications
Space-constrained designs
Pb-Free, Halogen Free/BFR Free, and RoHS compliant applications

Key features

Ultra−High Speed: tPD 2.3 ns (Typical) into 50 pF at 5 V VCC
High Output Drive: ±24 mA at 3 V VCC
Broad VCC Operating Range: 1.65 V to 5.5 V
Matches Performance of LCX when Operated at 3.3 V VCC
Power Down High−Impedance Inputs / Outputs
Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
Proprietary Noise / EMI Reduction Circuitry
Ultra−Small MicroPak Packages
Space−Saving SC70 6−Lead Package
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
