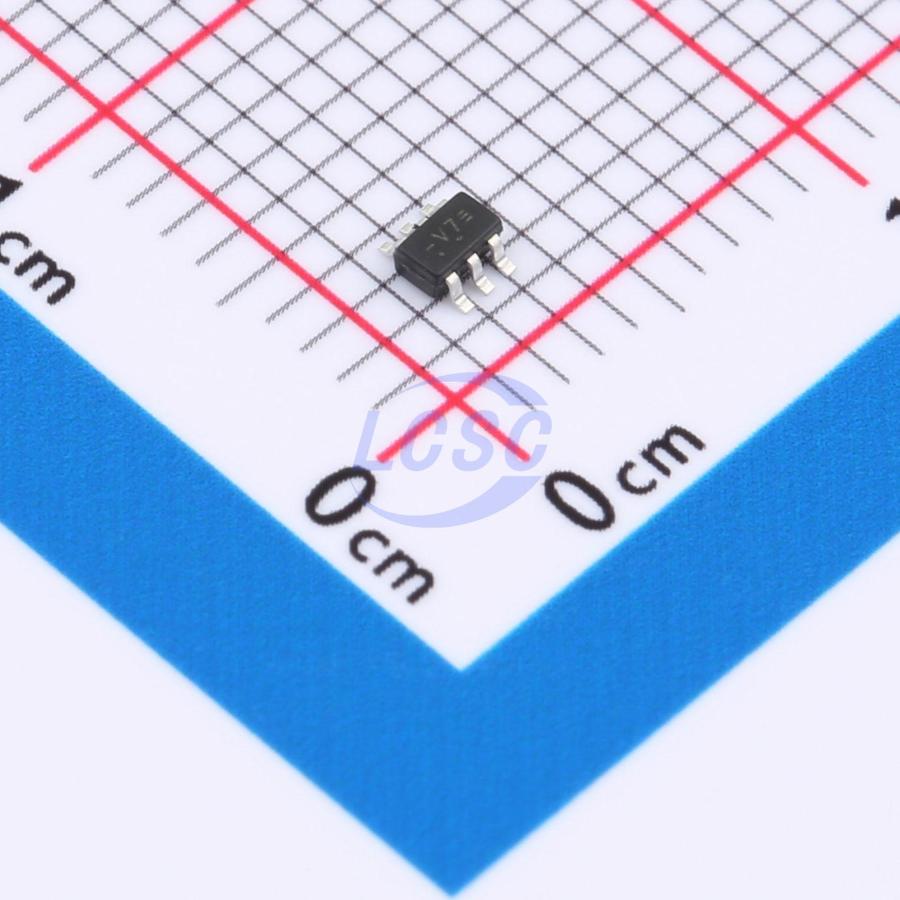

74LVC2G07GW
Schmitt trigger 1.65V~5.5V 1 2 SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual Schmitt-Trigger Buffer
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G07GW
- Store part #
- C19829574
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C19829574
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.71 | ₹97.10 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.54 | ₹33,240.00 |
| 9,000+ | ₹5.25 | ₹47,250.00 |
10 × ₹9.71
₹97.10
excl. GST
₹114.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G07GW
₹97.10 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The 74LVC2G07 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operate From 1.65V to 5.5V
- 5 V tolerant input/output for interfacing with 5 V logic
- ±24mA output drive (VCC = 3.3V)
- CMOS low-power consumption and high noise immunity
- OFF Supports Partial-Power-Down Mode Operation
- Latch-up performance exceeds 100mA
- Specified from -40°C to +125°C
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114 - A)
- 1000-V Charged-Device Model (C101)
- SOT23-6 Package Available
- SOT363 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC2G17GW#C19829576TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 9,120 | ₹7.04 · 9,120 in stock | View |
 | SN74LVC2G07DCKR#C19829676TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 5,620 | ₹6.93 · 5,620 in stock | View |
 | SN74LVC2G17DCKR#C19829678TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,660 | ₹7.10 · 3,660 in stock | View |
 | 74LVC2G07DW-TP#C52145915TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,000 | ₹6.42 · 3,000 in stock | View |
 | TP74LVC2G07C6#C42460202TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,810 | ₹12.52 · 2,810 in stock | View |
