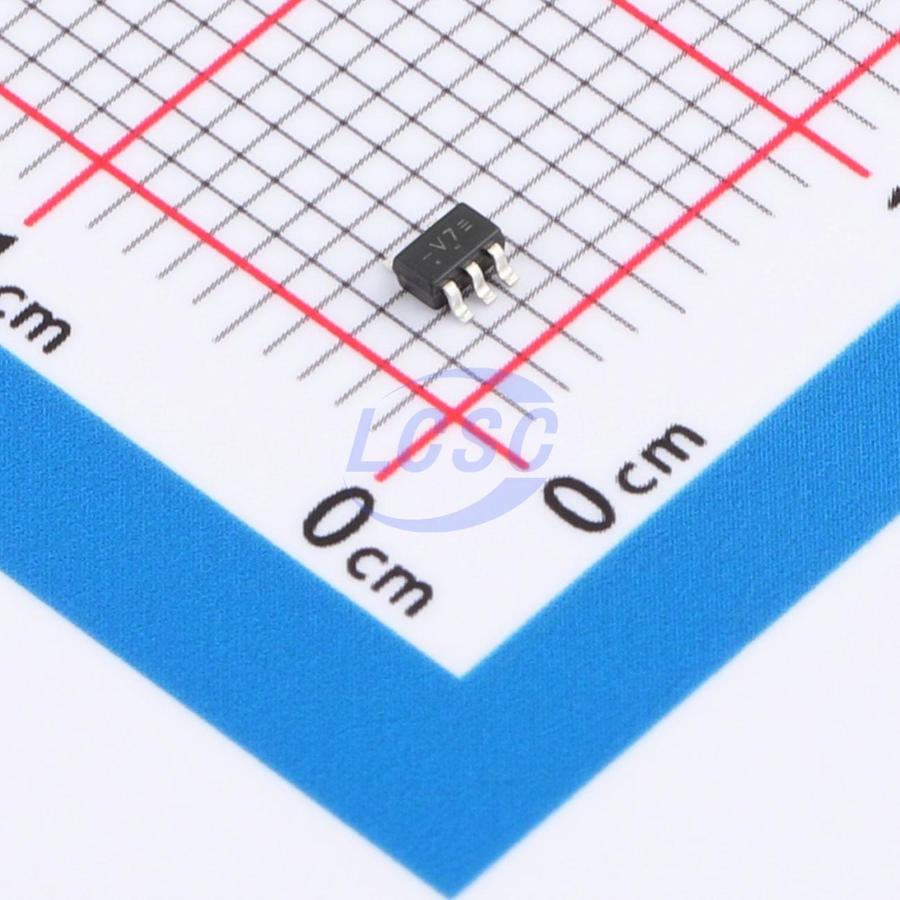

74LVC2G07DW-TP
Schmitt trigger 1.65V~5.5V 1 2 5.4ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G07DW-TP
- Store part #
- C52145915
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52145915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G07DW-TP
₹64.20 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 5.4ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC2G07 is a high-performance, low-power, low-voltage silicon gate CMOS device featuring two independent buffers with Schmitt trigger inputs. It converts slowly changing input signals into well-defined, bounce-free output signals.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- Consumer electronics
- Computing and communications equipment
Key features
- Operating voltage range: 1.65V to 5.5V
- 5V-tolerant I/O for interfacing with 5V logic
- Output drive capability: ±24mA (VCC = 3.3V)
- CMOS low power consumption and high noise immunity
- Power-down support for partial power-down mode operation
- Latch-up performance exceeds 100mA
- Operating temperature range: -40°C to +125°C
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Charged Device Model: 1000V (C101)
- Available in SOT23-6 package
- Available in SOT363 package
