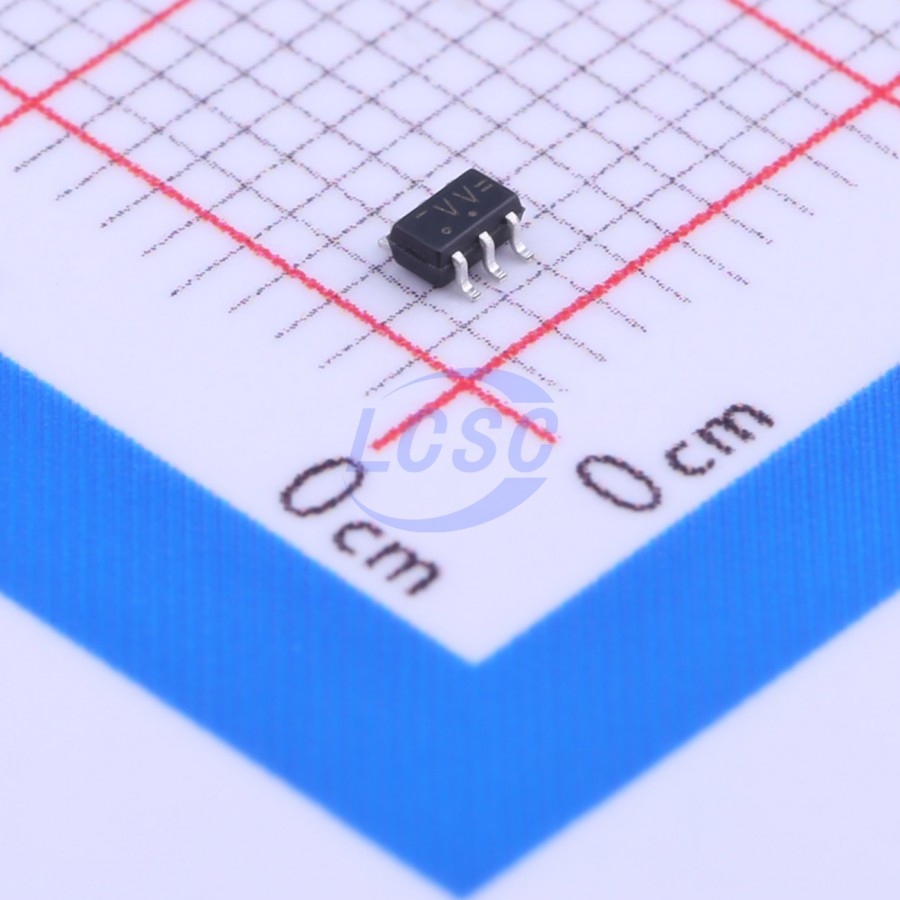

74LVC2G17GW,125

Schmitt trigger 1.65V~5.5V 1 2 3.6ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-363ROHS3 CompliantActive

Dual non-inverting Schmitt trigger with 5 V tolerant input

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G17GW,125
Store part #: C80500
Package / case: SOT-363
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,700 in stock

#C80500

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.38	₹56.90
50+	₹8.92	₹446.00
150+	₹7.69	₹1,153.50
500+	₹6.76	₹3,380.00
3,000+	₹6.02	₹18,060.00
6,000+	₹5.65	₹33,900.00

Quantity (min 5, multiples of 5)

5 × ₹11.38

₹56.90

excl. GST

₹67.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G17GW,125

₹56.90 for 5 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Type: Push-pull
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 4uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 3.6ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

The 74LVC2G17 is a dual buffer with Schmitt-trigger inputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.

Applications

Wave and pulse shapers for highly noisy environments
Dual non-inverting Schmitt trigger with 5 V tolerant input

Key features

Wide supply voltage range from 1.65 V to 5.5 V
Overvoltage tolerant inputs to 5.5 V
High noise immunity
±24 mA output drive (VCC = 3.0 V)
CMOS low-power consumption
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
IOFF circuitry provides partial Power-down mode operation
Complies with JEDEC standard: JESD8 - 7 (1.65 V to 1.95 V), JESD8 - 5 (2.3 V to 2.7 V), JESD - 8B/JESD36 (2.7 V to 3.6 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
