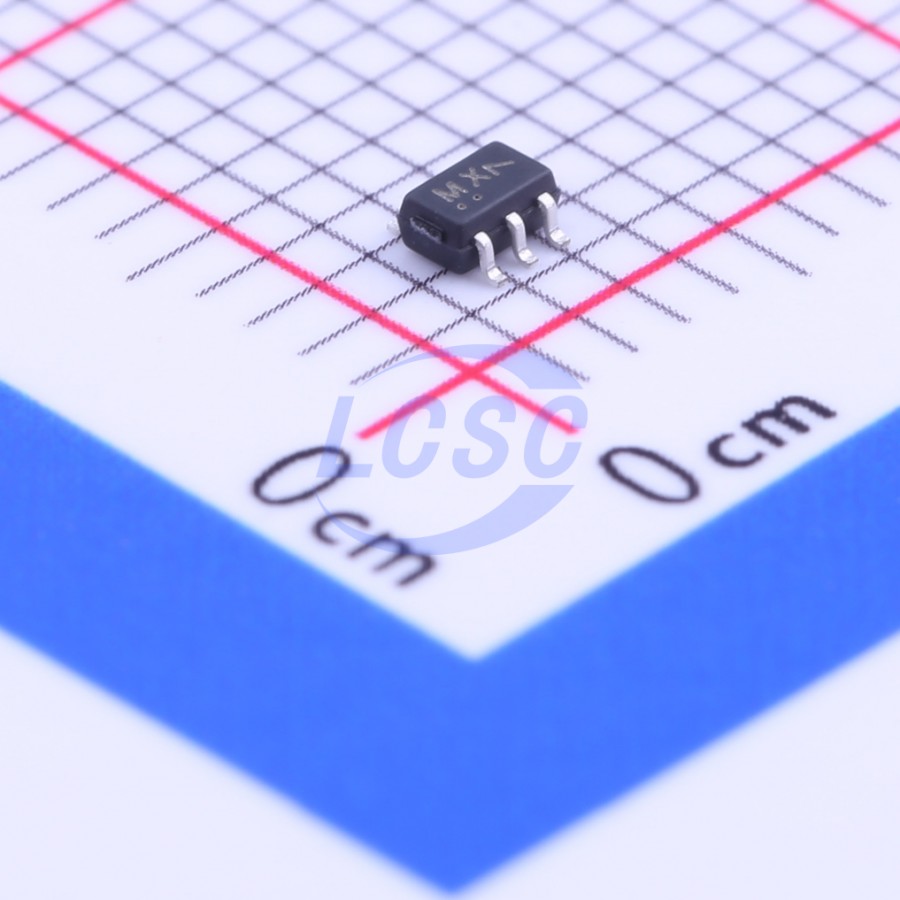

NL27WZ17DFT2G
Schmitt trigger 1.65V~5.5V 1 2 3.7ns@5V,50pF SC-70-6(SOT-363) Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-6(SOT-363)ROHS3 CompliantActive
Dual Non-Inverting Schmitt Trigger Buffer
- Manufacturer
- onsemi
- Manufacturer part #
- NL27WZ17DFT2G
- Store part #
- C152467
- Package / case
- SC-70-6(SOT-363)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,450 in stock
#C152467
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.17 | ₹91.70 |
| 100+ | ₹7.22 | ₹722.00 |
| 300+ | ₹6.24 | ₹1,872.00 |
| 3,000+ | ₹5.24 | ₹15,720.00 |
| 6,000+ | ₹4.64 | ₹27,840.00 |
| 9,000+ | ₹4.35 | ₹39,150.00 |
10 × ₹9.17
₹91.70
excl. GST
₹108.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ17DFT2G
₹91.70 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 27WZ
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Output Type
- Push-pull
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -55℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The NL27WZ17 is a high performance dual buffer operating from a 1.65 to 5.5 V supply. At VCC = 3.0 Vz high impedance TTL compatible inputs significantly reduce current loading to input drivers while the TTL compatible outputs offer improved switching noise performance.
Key features
- Extremely High Speed: tPD 2.0 ns (typical) at VCC = 5.0 V
- Designed for 1.65 V to 5.5 V VCC Operation
- Overvoltage Tolerant Inputs
- LVTTL Compatible − Interface Capability with 5.0 V TTL Logic with VCC = 3.0 V (2.7−3.3)
- LVCMOS Compatible
- 24 mA Balanced Output Sink and Source Capability at VCC = 3.0 V
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- Chip Complexity: FET = 72 ; Equivalent Gate = 18
- These Devices are Pb −Free and are RoHS Compliant
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC2G17GW,125#C80500Nexperia · SOT-363 | Nexperia | SOT-363 | 13,700 | ₹11.38 · 13,700 in stock | View |
 | SN74LVC2G17MDCKREP#C2652119TI · SC-70-6 | TI | SC-70-6 | 297 | ₹236.76 · 297 in stock | View |
 | SN74LVC2G17DCK3#C1879783TI · SC-70-6 | TI | SC-70-6 | 478 | ₹61.33 · 478 in stock | View |
 | SN74LVC2G17QDCKRQ1#C2867022TI · SC-70-6 | TI | SC-70-6 | 4,362 | ₹57.85 · 4,362 in stock | View |
 | SN74LVC2G17DCKR#C50714TI · SC-70-6 | TI | SC-70-6 | 38,350 | ₹29.25 · 38,350 in stock | View |
