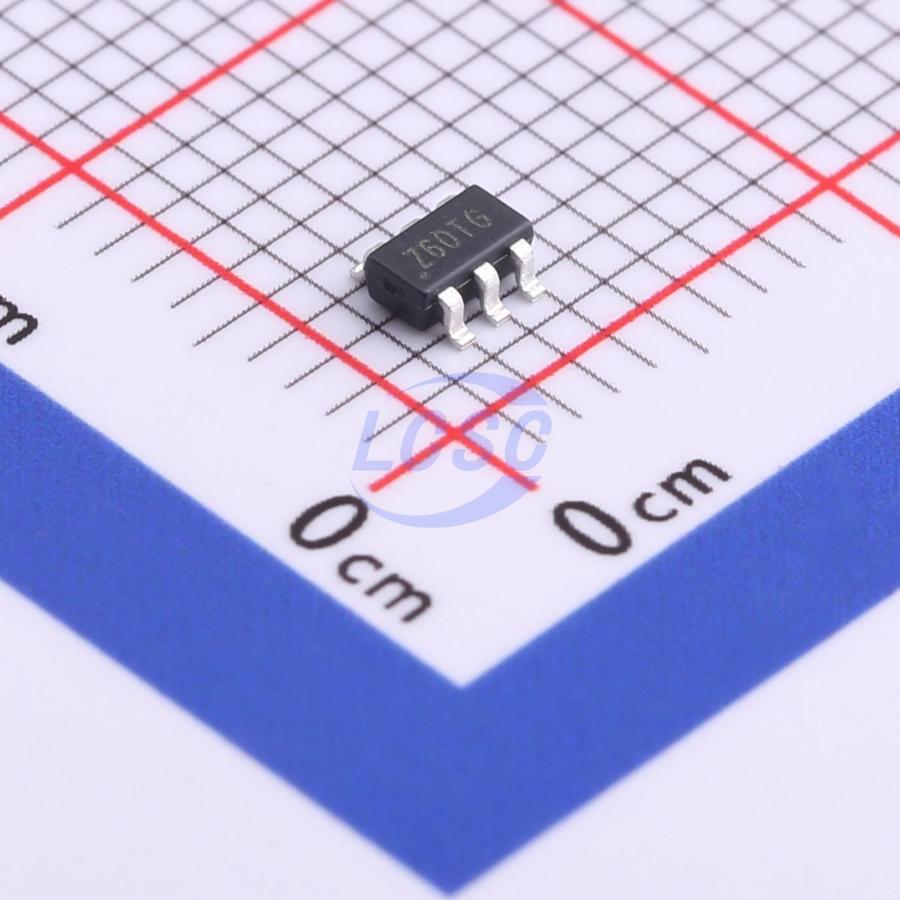

DUAL SCHMITT TRIGGER BUFFERS

Manufacturer: DIODES
Manufacturer part #: 74LVC2G17W6-7
Store part #: C460539
Package / case: SOT-26
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

995 in stock

#C460539

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.97	₹119.85
50+	₹18.64	₹932.00
150+	₹16.35	₹2,452.50
500+	₹13.49	₹6,745.00
3,000+	₹12.24	₹36,720.00
6,000+	₹11.47	₹68,820.00

Quantity (min 5, multiples of 5)

5 × ₹23.97

₹119.85

excl. GST

₹141.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G17W6-7

₹119.85 for 5 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Type: Push-pull
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 5.7ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The 74LVC2G17 is a dual Schmitt trigger buffer gate with standard push - pull outputs. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such As:
PCs, Networking, Notebooks, Netbooks, Tablets
Computer Peripherals, Hard Drives, SSD, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.0V
CMOS Low Power Consumption
IOFF Supports Partial - Power - Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 200V Machine Model (A115)
Exceeds 2000V Human Body Model (A114)
Exceeds 1000V Charged Device Model (C101)
Latch - Up Exceeds 100mA per JESD 78, Class I
DFN1409 Package Designed as a Direct Replacement for Chip Scale Packaging
Range of Package Options SOT26, SOT363, X1 - DFN1010 - 6, X2 - DFN1010 - 6, X2 - DFN1409 - 6, and X2 - DFN1410 - 6
Leadless Packages Named per JESD30E
Totally Lead - Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
