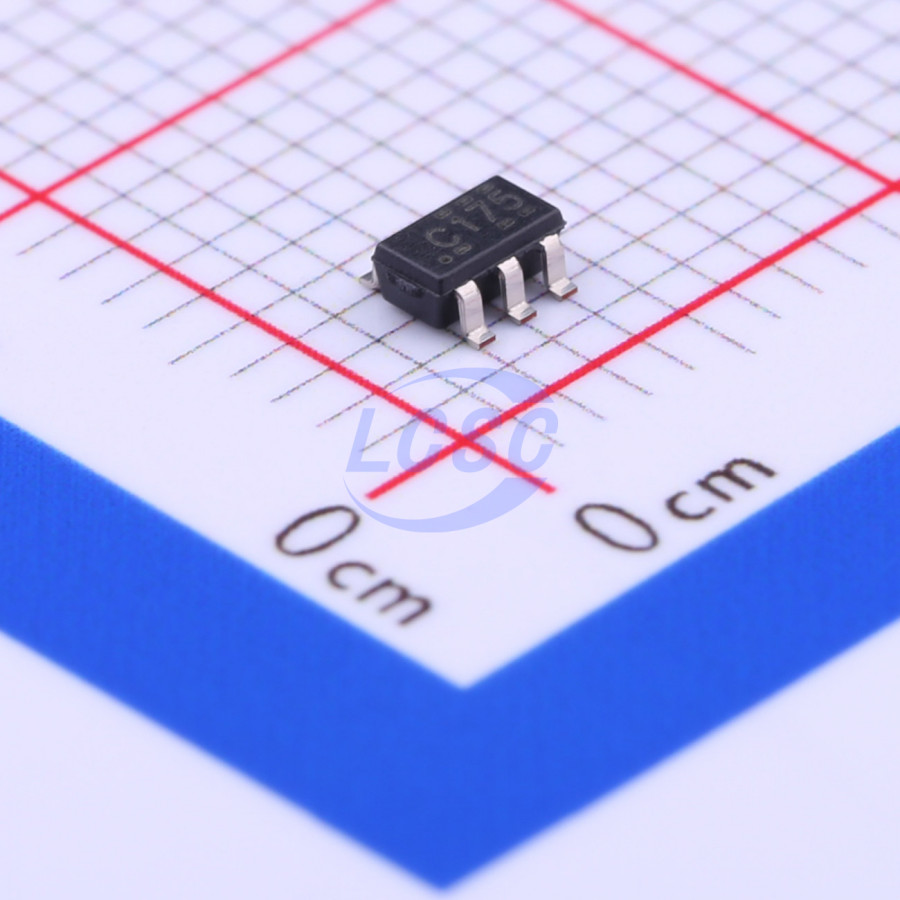

SN74LVC2G17DBVR

This dual Schmitt - trigger buffer is designed for 1.65 - V to 5.5 - V VCC operation. The SN74LVC2G17 contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive - going (VT+) and negative - going (VT - ) signals. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Available in the Texas Instruments NanoStar and NanoFree Packages
• Supports 5 - V VCC Operation
• Inputs Accept Voltages to 5.5V Max
• tpd of 5.4 ns at 3.3V
• Low Power Consumption, 10 - μA Max Icc
• ±24 - mA Output Drive at 3.3V
• Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2V at VCC = 3.3V, TA = 25℃
• Ioff Supports Partial - Power - Down Mode Operation
• Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22: 2000 - V Human - Body Model (A114 - A), 1000 - V Charged - Device Model (C101)
