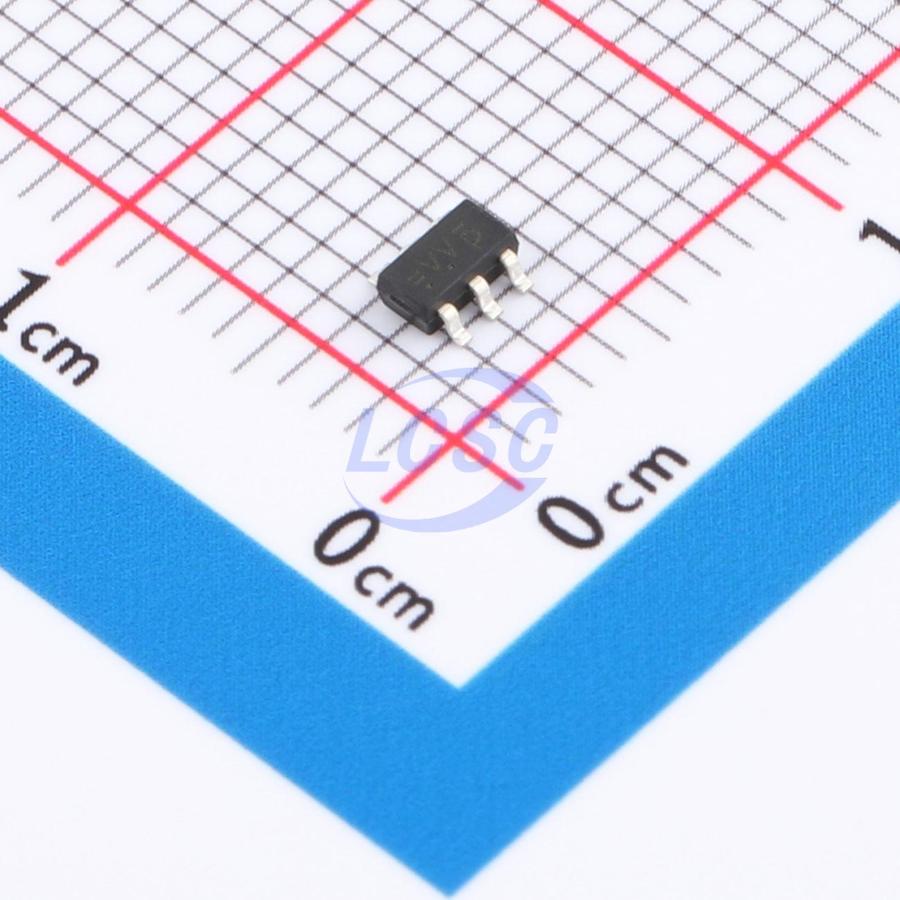

74LVC2G17W6-TP
Schmitt trigger 1.65V~5.5V 2 2 SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G17W6-TP
- Store part #
- C52145921
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C52145921
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.64 | ₹564.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.30 | ₹12,900.00 |
| 6,000+ | ₹3.84 | ₹23,040.00 |
| 9,000+ | ₹3.61 | ₹32,490.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G17W6-TP
₹71.70 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 9.3ns@1.8V,30pF;5.7ns@2.5V,30pF;5.4ns@3.3V,50pF;4.3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74LVC2G17 is a high-performance, low-power, low-voltage silicon-gate CMOS device featuring two independent Schmitt-trigger buffers. It converts slowly changing input signals into clean, well-defined, bounce-free output signals.
Applications
- Voltage level translation
- General-purpose logic
- Power-off signal isolation
- Personal computers
- Network equipment
Key features
- Operating voltage range: 1.65V to 5.5V
- 5V logic-level compatible I/O, 5V tolerant
- Output drive capability: ±24mA (VCC = 3.3V)
- CMOS technology with low power consumption and high noise immunity
- Supports partial power-down mode operation during shutdown
- Latch-up performance exceeds 100mA
- Operating temperature range: -40°C to +125°C
- ESD protection exceeds JESD 22: HBM 2000V (A114-A), CDM 1000V (C101)
- Available in SOT23-6 package
- Available in SOT363 package
