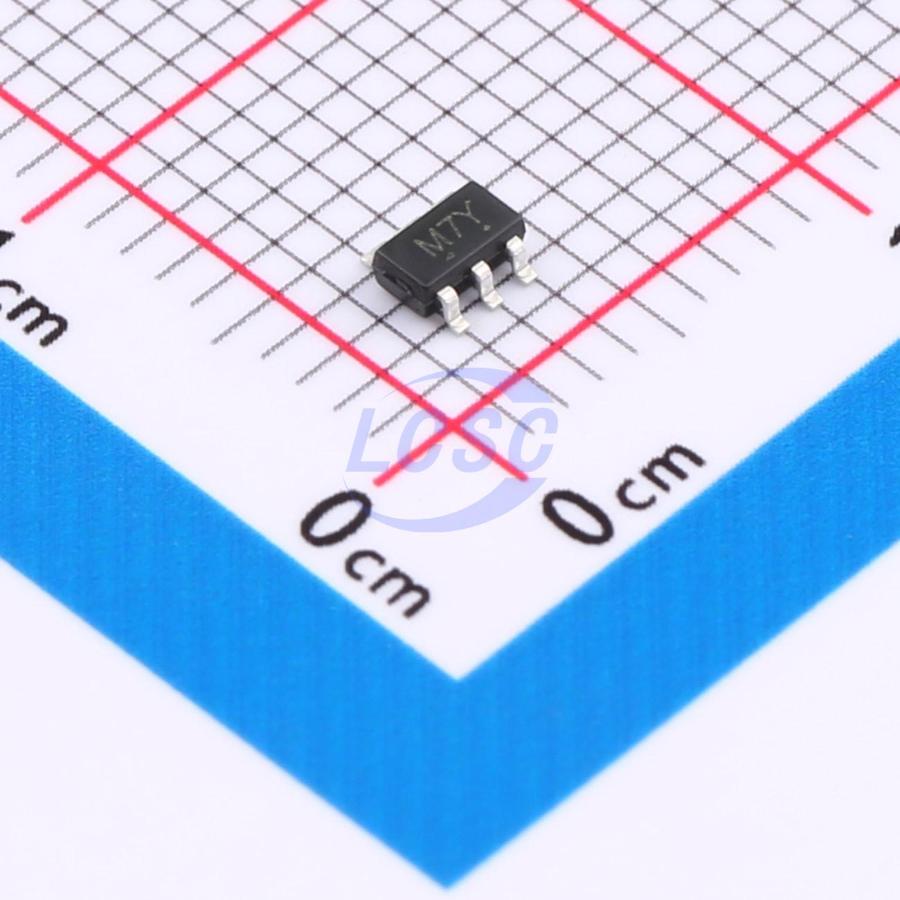

NL27WZ07DTT1G-TP
1.65V~5.5V 2 2 1.5ns@5V,50pF SOT23-6 Buffers, Drivers, Receivers, Transceivers
SOT23-6RoHSActive
BUFFERS WITH OPEN-DRAIN OUTPUTS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL27WZ07DTT1G-TP
- Store part #
- C41408015
- Package / case
- SOT23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,930 in stock
#C41408015
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.52 | ₹85.20 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 3,000+ | ₹5.38 | ₹16,140.00 |
| 6,000+ | ₹4.90 | ₹29,400.00 |
| 9,000+ | ₹4.64 | ₹41,760.00 |
10 × ₹8.52
₹85.20
excl. GST
₹100.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ07DTT1G-TP
₹85.20 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Output Type
- Open-drain
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 1.5ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The NL27WZ07 provides two non-inverting buffers With open-drain output and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. This device has power-down protective circuit to preventing device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Wide Supply Voltage Range From 1.65V To 5.5V. Inputs Can Be Driven From Either 3.3V or 5V Devices.
- ±24-mA Output Drive at 3.3V
- Low Power Dissipation: Ptot = 300mW(Max)
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC2G07S6#C42460203TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,930 | ₹12.58 · 2,930 in stock | View |
 | TP74LVC2G17S6#C42460207TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,570 | ₹12.58 · 2,570 in stock | View |
 | 74LVC2G34W6-TP#C52145919TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,960 | ₹5.89 · 2,960 in stock | View |
 | 74LVC2G17W6-TP#C52145921TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,710 | ₹7.17 · 2,710 in stock | View |
