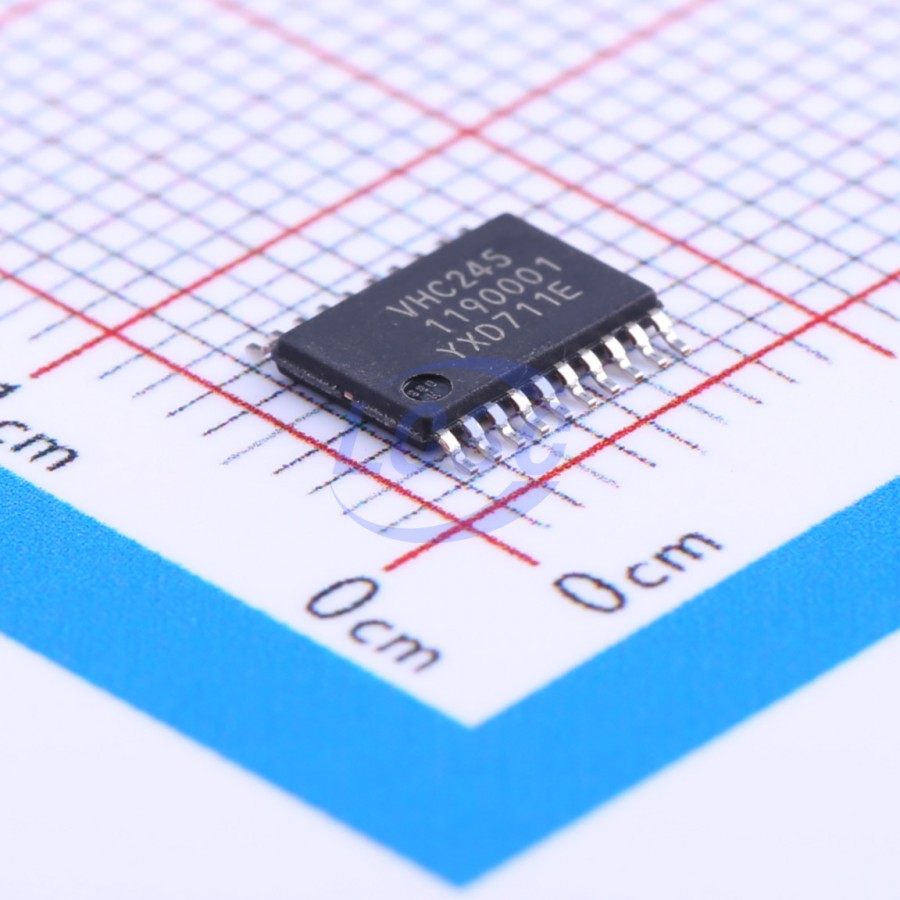

74VHC245PW,118
Schmitt trigger 2V~5.5V 8 1 5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74VHC245PW,118
- Store part #
- C179339
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80,515 in stock
#C179339
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.30 | ₹116.50 |
| 50+ | ₹17.95 | ₹897.50 |
| 150+ | ₹15.66 | ₹2,349.00 |
| 500+ | ₹12.81 | ₹6,405.00 |
| 2,500+ | ₹11.54 | ₹28,850.00 |
| 5,000+ | ₹10.77 | ₹53,850.00 |
5 × ₹23.30
₹116.50
excl. GST
₹137.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHC245PW,118
₹116.50 for 5 + GST
Specifications
- Function
- Output enable
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 2V~5.5V
- Series
- 74VHC
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The 74VHC245; 74VHCT245 are high-speed Si-gate CMOS devices. The 74VHC245; 74VHCT245 are octal transceivers featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74VHC245; 74VHCT245 feature an output enable input (OE), for easy cascading, and a send and receive direction control input (DIR). OE controls the outputs so that the buses are effectively isolated.
Key features
- Balanced propagation delays
- All inputs have Schmitt-trigger action
- Inputs accept voltages higher than V_CC
- Input levels: The 74VHC245 operates with CMOS input level The 74VHCT245 operates with TTL input level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
