TOSHIBADatasheet (PDF)

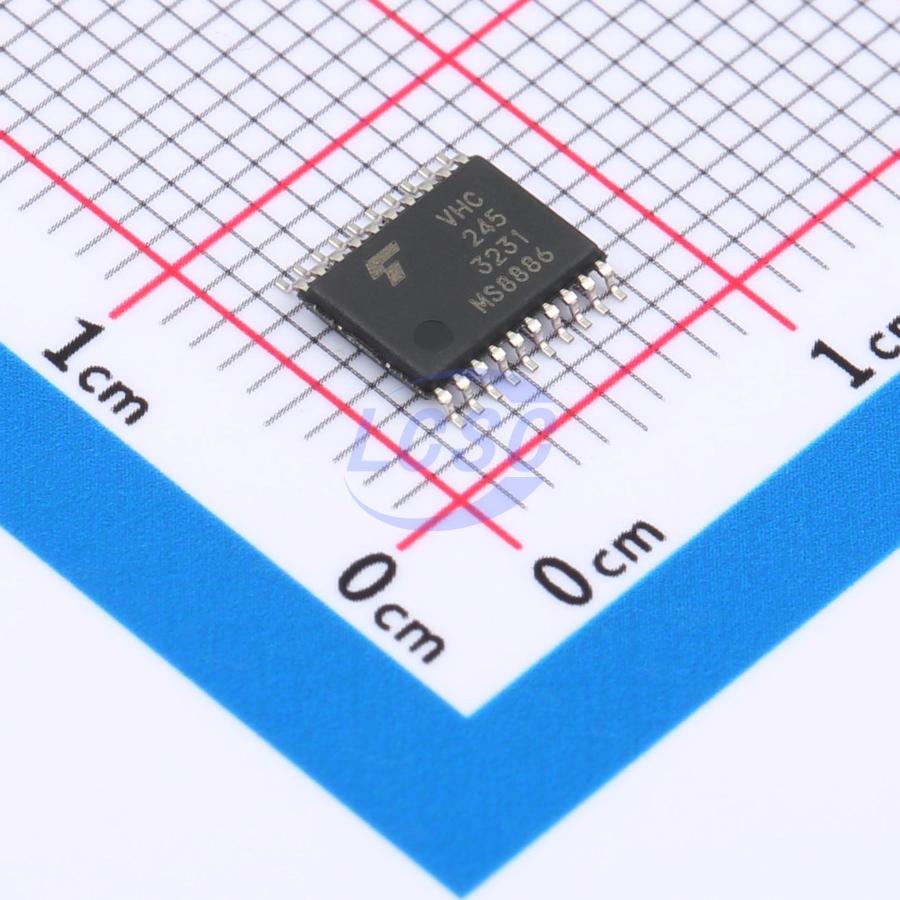

74VHC245FT(BJ)
2V~5.5V 8 1 4ns@5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74VHC245FT(BJ)
- Store part #
- C2676119
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,295 in stock
#C2676119
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.50 | ₹112.50 |
| 50+ | ₹17.54 | ₹877.00 |
| 150+ | ₹15.41 | ₹2,311.50 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 2,500+ | ₹11.58 | ₹28,950.00 |
| 5,000+ | ₹10.86 | ₹54,300.00 |
5 × ₹22.50
₹112.50
excl. GST
₹132.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHC245FT(BJ)
₹112.50 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 2V~5.5V
- Series
- 74VHC
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 4ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.234 g
Overview
The 74VHC245FT is an advanced high speed CMOS OCTAL BUS TRANSCEIVER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. It is intended for two-way asynchronous communication between data busses. The direction of data transmission is determined by the level of the DIR input. The enable input (G)(overline) can be used to disable the device so that the busses are effectively isolated. All inputs are equipped with protection circuits against static discha
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T_opr = -40 to 125 °C
- High speed: Propagation delay time = 4.0 ns (typ.) at V_CC = 5.0 V
- Low power dissipation: I_CC = 4.0 μA (max) at T_a = 25 °C
- High noise immunity: ΔV_NIH = V_NIL = 28 % V_CC (min)
- Balanced propagation delays: tp_(LH) ≈ tp_(HL)
- Wide operating voltage range: V_CC(opr) = 2.0 V to 5.5 V
- Low noise: V_OLP = 1.0 V (max)
- Pin and function compatible with the 74 series (74AC/HC/AHC etc.) 245 type.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC245DTR2G#C904176onsemi · TSSOP-20 | onsemi | TSSOP-20 | 35 | ₹116.32 · 35 in stock | View |
 | 74VHC245FT(BJ,K)#C7421284TOSHIBA · TSSOP-20B | TOSHIBA | TSSOP-20B | 1,045 | ₹29.57 · 1,045 in stock | View |
 | 74VHC245PW,118#C179339Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 81,220 | ₹23.21 · 81,220 in stock | View |
 | 74VHC245FT(BE)#C8096TOSHIBA · TSSOP-20 | TOSHIBA | TSSOP-20 | 1,030 | ₹36.78 · 1,030 in stock | View |
 | SN74AHC245PWR#C132987TI · TSSOP-20 | TI | TSSOP-20 | 9,652 | ₹89.99 · 9,652 in stock | View |
