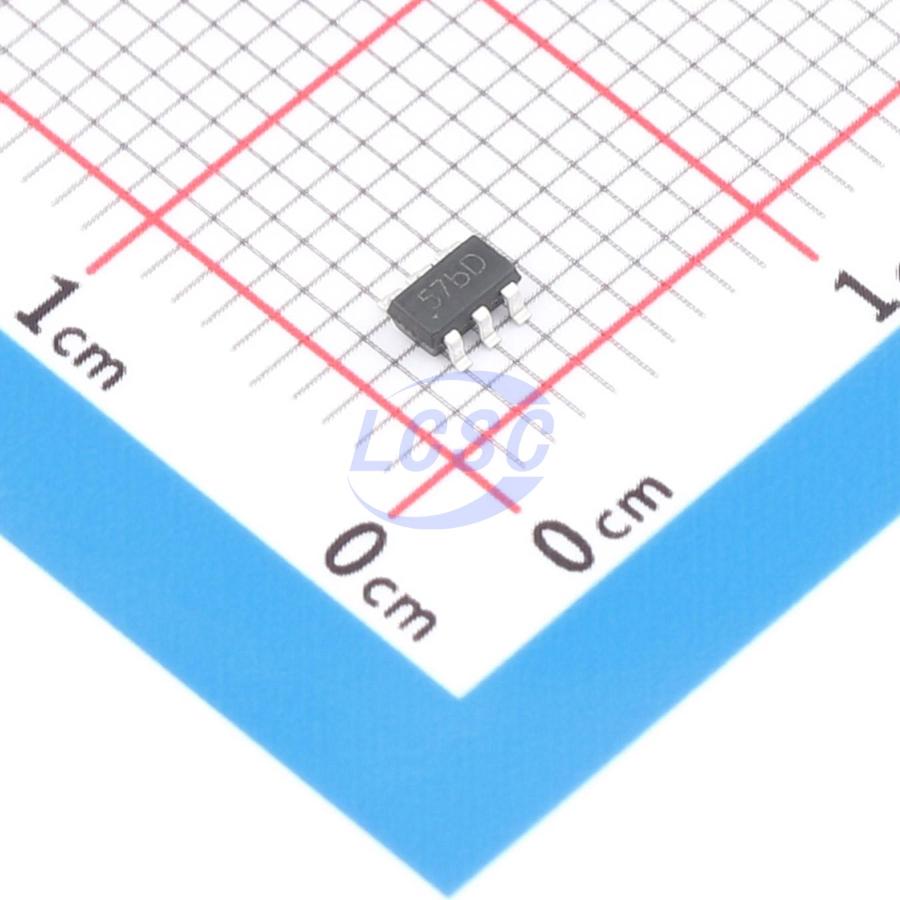

9017R-MS
Lithium Battery 500mA SOT-23-6 Battery Management
- Manufacturer
- MSKSEMI
- Manufacturer part #
- 9017R-MS
- Store part #
- C50385424
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C50385424
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.56 | ₹91.20 |
| 200+ | ₹3.57 | ₹714.00 |
| 600+ | ₹3.02 | ₹1,812.00 |
| 3,000+ | ₹2.69 | ₹8,070.00 |
| 9,000+ | ₹2.39 | ₹21,510.00 |
| 21,000+ | ₹2.25 | ₹47,250.00 |
20 × ₹4.56
₹91.20
excl. GST
₹107.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
9017R-MS
₹91.20 for 20 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Quiescent Current
- 25uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
The 9017R-MS is a complete constant-current/constant-voltage linear charger IC for single-cell lithium-ion batteries. Its SOT package and minimal external component count make it ideally suited for portable applications. The IC is designed to operate within USB power specifications. The internal MOSFET architecture eliminates the need for external sense resistors and blocking diodes. A thermal feedback function regulates the charge current to limit the die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, and the charge current is programmable via a single external resistor. When the charge current drops to 1/10 of the programmed value after the final float voltage is reached, the IC automatically terminates the charge cycle. When the input voltage is removed, the IC automatically enters a low-current state, reducing battery leakage current to below 2μA. The IC can also be placed in shutdown mode, reducing supply current to 25μA. Additional features include a charge current monitor, undervoltage lockout, automatic recharge, and a status pin indicating charge termination and input voltage presence.
Applications
- Cellular phones, PDAs, MP3 players
- Charging docks
- Bluetooth devices
- Portable Li-ion device chargers
Key features
- Programmable charge current up to 500mA
- No MOSFET, sense resistors, or blocking diodes required
- Complete linear charger IC for single-cell Li-Ion batteries in SOT package
- Constant-current/constant-voltage operation with thermal regulation for maximum charge rate without risk of overheating
- Direct Li-Ion battery charging from USB port
- 4.2V preset charge voltage with 1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Charge status output pin
- C/10 charge termination
- 25μA supply current in shutdown mode
- 2.9V trickle charge threshold
- Soft-start limits inrush current
