TP4057-MS

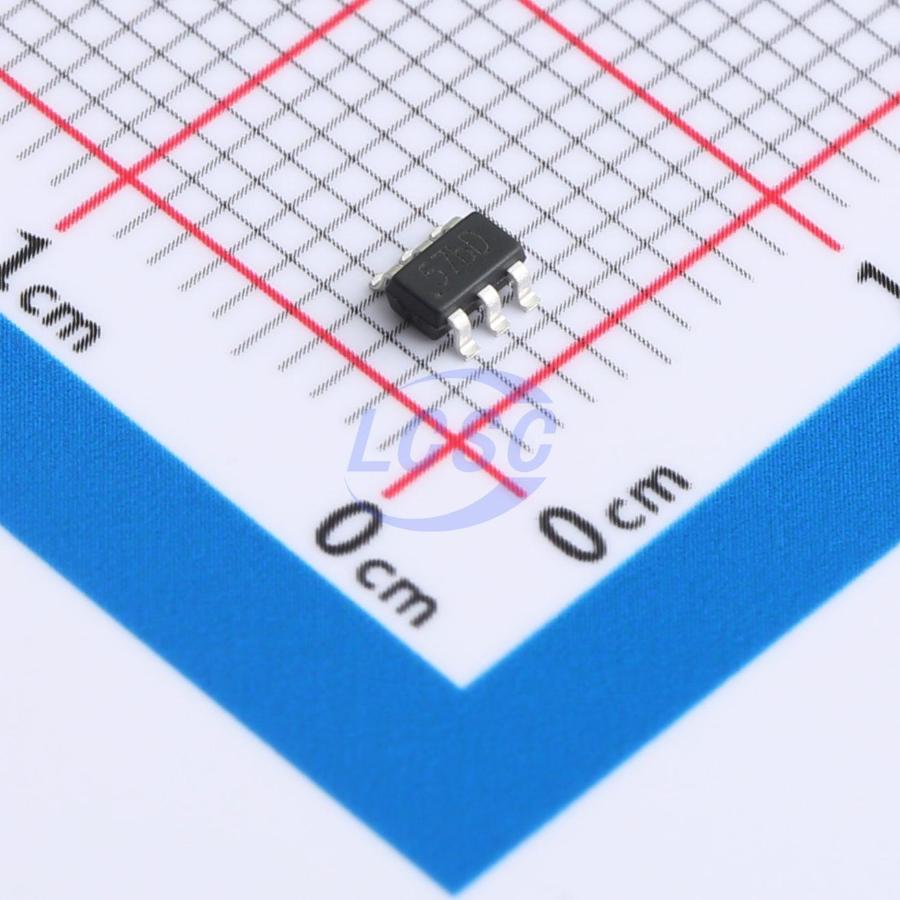

Battery Charging IC Lithium-ion/Polymer SOT-23-6
IC BATT CHG LI-ION/POLY 1CEL SOT-23-6
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TP4057-MS
- Store part #
- C7473159
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C7473159
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.25 | ₹52.50 |
| 100+ | ₹4.18 | ₹418.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹3.23 | ₹9,690.00 |
| 6,000+ | ₹2.91 | ₹17,460.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.25
₹52.50
excl. GST
₹61.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4057-MS
₹52.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 30uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~9V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
A complete constant-current/constant-voltage linear charger IC for single-cell lithium-ion batteries. The SOT package and minimal external component count make it ideal for portable applications. Designed to operate within USB power specifications. Employs an internal MOSFET architecture, eliminating the need for external sense resistors and blocking diodes. Thermal feedback regulates the charge current to limit die temperature during high-power operation or elevated ambient temperatures. Charge voltage is fixed at 4.2V, and charge current is externally programmable via a single resistor. The charge cycle terminates automatically when the charge current drops to 1/10 of the programmed value after the final float voltage is reached. When the input voltage is removed, the device automatically enters a low-current state, reducing battery drain current to below 2μA. A shutdown mode is available to reduce supply current to 25μA. Additional features include a charge current monitor, undervoltage lockout, automatic recharge, and a status pin for indicating charge termination and input voltage presence.
Applications
- Cellular phones
- PDA
- MP3 players
- Charging docks
- Bluetooth devices
- Portable lithium battery device chargers
Key features
- Programmable charge current up to 500mA
- No MOSFET, sense resistors, or blocking diodes required
- Complete linear charger IC for single-cell Li-Ion batteries in SOT package
- Constant-current/constant-voltage operation with thermal regulation for maximizing charge rate without risk of overheating
- Charges Li-Ion batteries directly from USB port
- 4.2V preset charge voltage with 1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Charge status output pin
- C/10 charge termination
- 25μA supply current in shutdown mode
- 2.9V trickle charge threshold
- Soft-start limits inrush current
