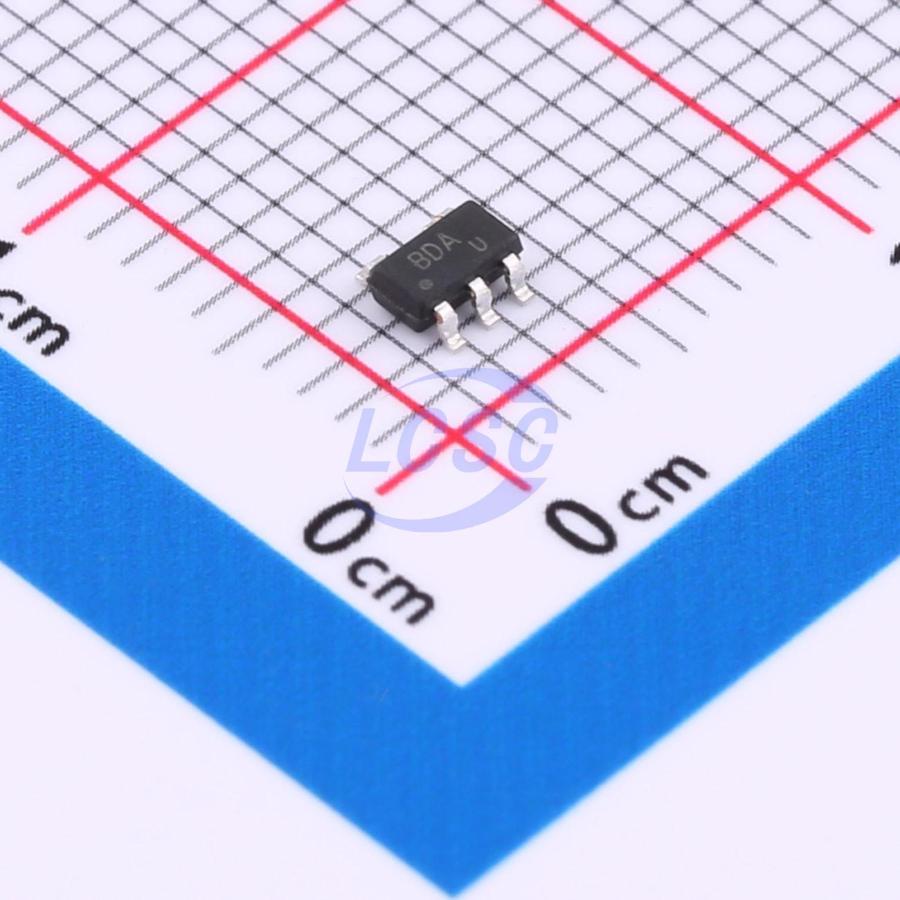

AD8515ARTZ(UMW)

20mA 1 1mV 2.7V/us 50dB 2pA 325uA 5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

1.8V Low Power CMOS Rail-to-Rail Input/Output Operational Amplifier

Manufacturer: UMW
Manufacturer part #: AD8515ARTZ(UMW)
Store part #: C20754799
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,765 in stock

#C20754799

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.54	₹142.70
50+	₹24.75	₹1,237.50
150+	₹23.14	₹3,471.00
500+	₹21.13	₹10,565.00
3,000+	₹20.23	₹60,690.00
6,000+	₹19.69	₹1,18,140.00

Quantity (min 5, multiples of 5)

5 × ₹28.54

₹142.70

excl. GST

₹168.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8515ARTZ(UMW)

₹142.70 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 2.7V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 50dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 325uA
Gain Bandwidth Product: 5MHz
Input Voltage Noise Density: 22nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The AD8515 is a rail-to-rail amplifier that operates from a single supply as low as 1.8 V. This single amplifier is available in 5-lead SOT-23 and 5-lead SC70 packages, offering a compact footprint for placement close to sensors to minimize external noise pickup. The AD8515 is a rail-to-rail input and output amplifier with a gain bandwidth of 5 MHz and a typical offset voltage of 1 mV at a 1.8 V supply. Low supply current makes it ideal for battery-powered applications. A slew rate of 2.7 V/μs makes it well suited for driving ASIC inputs such as voice codecs.

Applications

Portable communications
Portable phones
Sensor interfaces
Laser scanners

Key features

Single-supply operation: 1.8V to 5V
Offset voltage: 6 mV max
Space-saving SOT23-5 and SC70-5 packages
Slew rate: 2.7V/μs
Bandwidth: 5 MHz
Rail-to-rail input and output swing
Low input bias current: 2 pA typical
Low supply current @1.8V: 450 μA max
