ADI

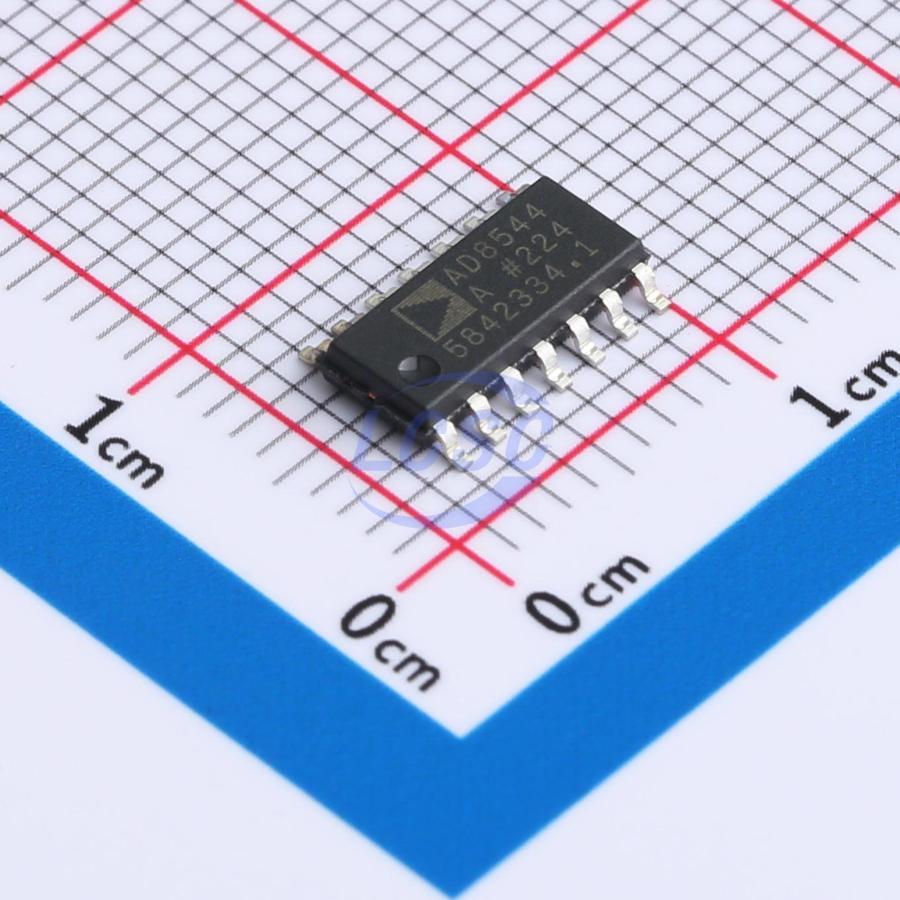

AD8544ARZ-REEL

4 6mV 920V/ms 48dB 100pA SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

CMOS Rail-to-Rail General-Purpose Amplifiers

Manufacturer: ADI
Manufacturer part #: AD8544ARZ-REEL
Store part #: C652941
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,021 in stock

#C652941

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹306.25	₹306.25
10+	₹283.84	₹2,838.40
30+	₹269.71	₹8,091.30
100+	₹255.35	₹25,535.00
500+	₹248.83	₹1,24,415.00
1,000+	₹246.00	₹2,46,000.00

Quantity (min 1)

1 × ₹306.25

₹306.25

excl. GST

₹361.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8544ARZ-REEL

₹306.25 for 1 + GST

Specifications

Number of Channels: 4
Vos - Input Offset Voltage: 6mV
Slew Rate: 920V/ms
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 48dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Features: Built-in compensation
Input Voltage Noise Density: 42nV/√Hz@1kHz
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.182 g

Overview

The AD8541/AD8542/AD8544 are single, dual, and quad railto- rail input and output, single- supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. These parts provide 1 MHz bandwidth at a low current consumption of 45 μA per amplifier. Very low input bias currents enable the AD8541/AD8542/AD8544 to be used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance. The supply current is only 45 μA per amplifier, ideal for battery operation. Rail- to- rail inputs and outputs are useful to designers buffering ASICs in single- supply systems. The AD8541/AD8542/AD8544 are optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages. The AD8541/AD8542/AD8544 are specified over the extended industrial temperature range (- 40 °C to +125 °C).

Applications

ASIC input or output amplifiers
Sensor interfaces
Piezoelectric transducer amplifiers
Medical instrumentation
Mobile communications
Audio outputs
Portable systems

Key features

Single- supply operation: 2.7 V to 5.5 V
Low supply current: 45 μA /amplifier
Wide bandwidth: 1 MHz
No phase reversal
Low input currents: 4 pA
Unity gain stable
Rail- to- rail input and output
Qualified for automotive applications

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AD8544ARZ-REEL7#C125826ADI · SOIC-14	ADI	SOIC-14	20	₹469.51 · 20 in stock	View
COS6004SR#C693070COSINE · SOIC-14	COSINE	SOIC-14	5,980	₹29.81 · 5,980 in stock	View
AD8544ARZ#C652940ADI · SOIC-14	ADI	SOIC-14	On request	Price on request	Quote
