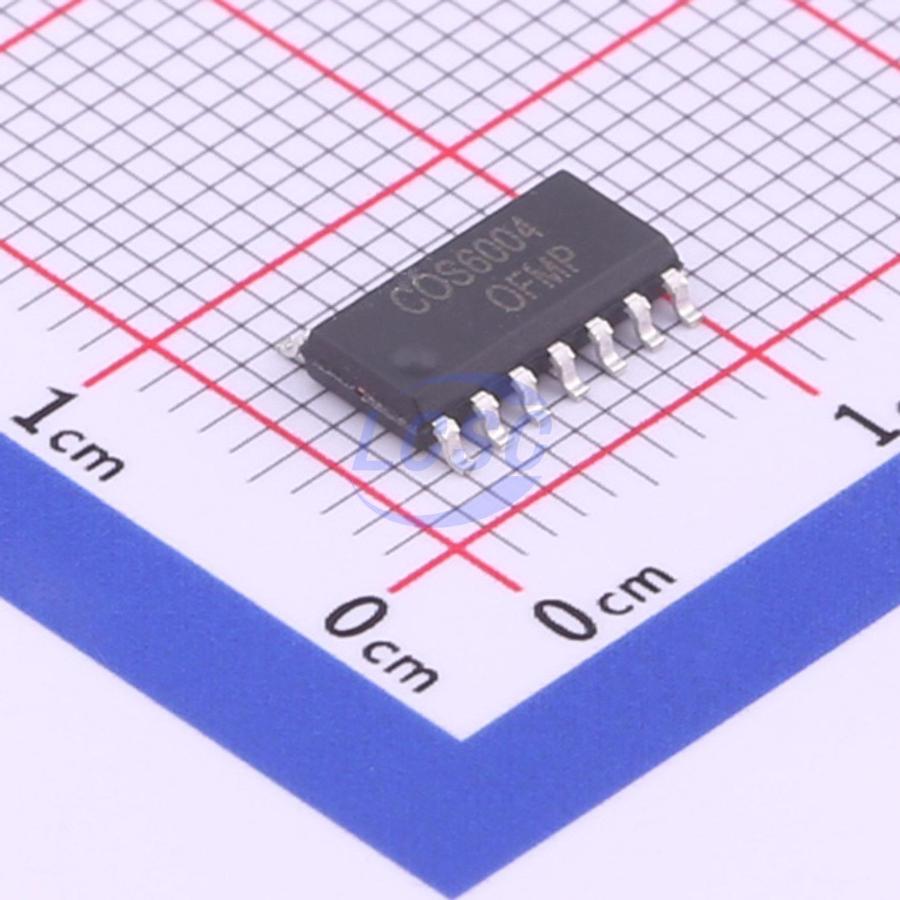

COS6004SR
21mA 4 5mV 700V/ms 2.5pA 125dB 50uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS CompliantActive
Micro Power Operational Amplifiers, 1.5MHz, Rail-to-Rail Input/Output
- Manufacturer
- COSINE
- Manufacturer part #
- COS6004SR
- Store part #
- C693070
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,980 in stock
#C693070
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.81 | ₹149.05 |
| 50+ | ₹22.93 | ₹1,146.50 |
| 150+ | ₹19.98 | ₹2,997.00 |
| 500+ | ₹16.29 | ₹8,145.00 |
| 3,000+ | ₹14.65 | ₹43,950.00 |
| 6,000+ | ₹13.67 | ₹82,020.00 |
5 × ₹29.81
₹149.05
excl. GST
₹175.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS6004SR
₹149.05 for 5 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.324 g
