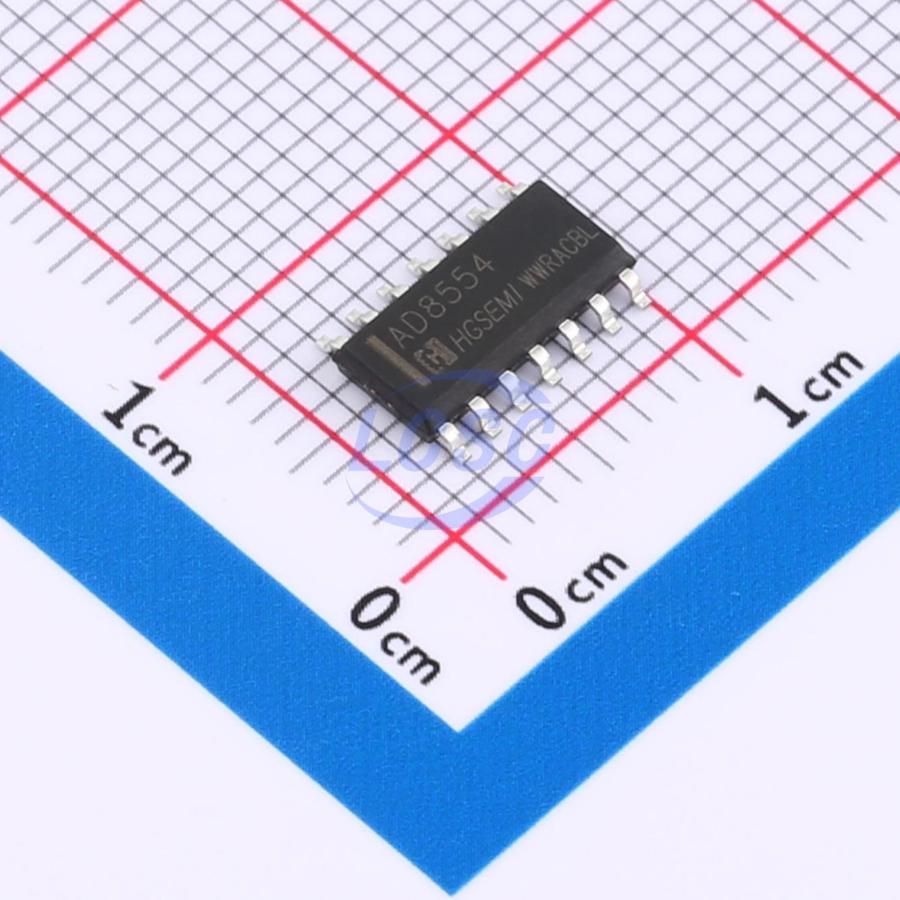

AD8554M/TR
65mA Four channels 30uV 0.95V/us 110dB 20pA 180uA 1.8MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
1.8MHz Zero-Drift CMOS Rail IO Opamp
- Manufacturer
- HGSEMI
- Manufacturer part #
- AD8554M/TR
- Store part #
- C48983862
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,236 in stock
#C48983862
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.94 | ₹58.94 |
| 10+ | ₹52.25 | ₹522.50 |
| 30+ | ₹49.02 | ₹1,470.60 |
| 100+ | ₹45.56 | ₹4,556.00 |
| 500+ | ₹43.62 | ₹21,810.00 |
| 1,000+ | ₹42.75 | ₹42,750.00 |
1 × ₹58.94
₹58.94
excl. GST
₹69.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AD8554M/TR
₹58.94 for 1 + GST
Specifications
- Output Current
- 65mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 0.95V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 180uA
- Gain Bandwidth Product
- 1.8MHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.339 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD8544AIM/TR#C49496646HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,475 | ₹32.41 · 2,475 in stock | View |
 | MCP6004AIM/TR#C49384185HGSEMI · SOP-14 | HGSEMI | SOP-14 | 1,795 | ₹22.95 · 1,795 in stock | View |
