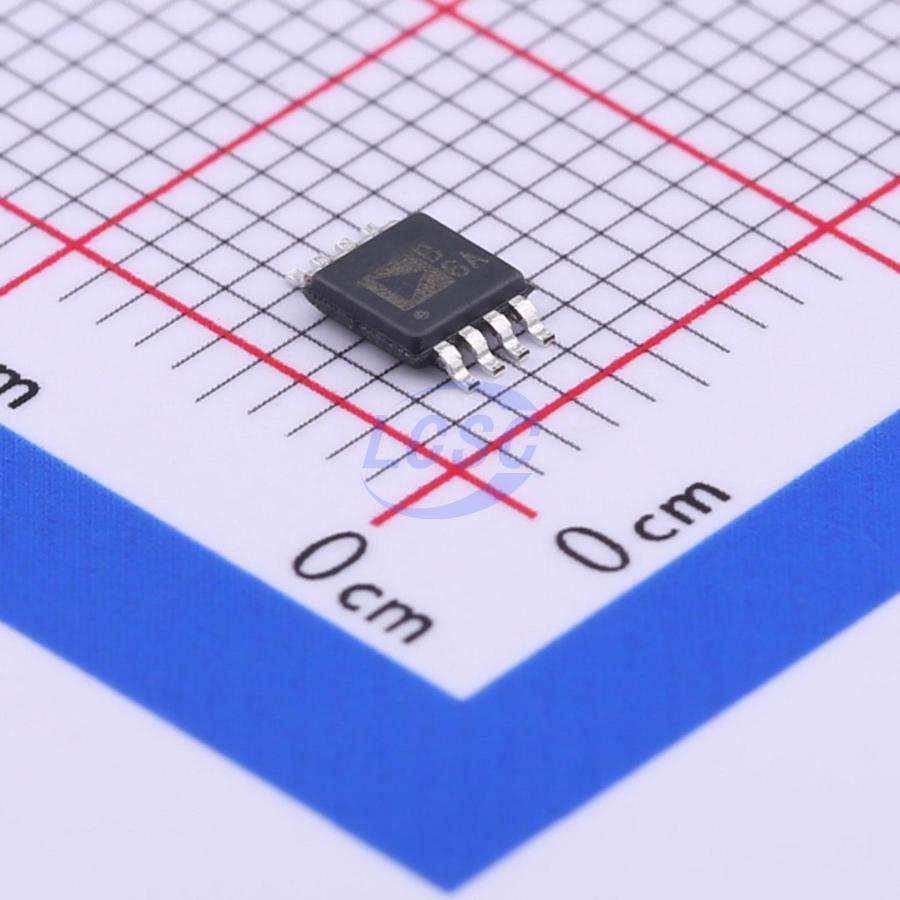

AD8606ARMZ-R7

80mA 2 65uV 5V/us 1pA 100dB 10MHz 1.2mA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

Precision, low-noise, CMOS, rail-to-rail input/output operational amplifier

Manufacturer: ADI
Manufacturer part #: AD8606ARMZ-R7
Store part #: C408833
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,377 in stock

#C408833

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,443.72	₹1,443.72
10+	₹1,227.73	₹12,277.30
30+	₹1,096.26	₹32,887.80
100+	₹809.44	₹80,944.00

Quantity (min 1)

1 × ₹1,443.72

₹1,443.72

excl. GST

₹1,703.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

AD8606ARMZ-R7

₹1,443.72 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 65uV
Slew Rate: 5V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 4.5uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 1.2mA
Features: Reverse-phase input protection;Overvoltage protection;Built-in compensation
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.137 g

Overview

The AD8605, AD8606, and AD8608 are single, dual, and quad, rail-to-rail input and output, single-supply amplifiers featuring ultralow offset voltage, low input voltage and current noise, and wide signal bandwidth. These amplifiers use the patented DigiTrim trimming technique to achieve excellent precision without laser trimming. The combination of low offset, low noise, ultralow input bias current, and high speed makes these amplifiers suitable for a wide range of applications. Filters, integrators, photodiode amplifiers, and high-impedance sensors can all benefit from this combination of characteristics. Wide bandwidth and low distortion benefit audio and other AC applications. Specific applications include optical control loops, portable and loop-powered instrumentation, and audio amplification in portable equipment. The AD8605, AD8606, and AD8608 are rated over the -40°C to +125°C extended industrial temperature range.

Applications

Photodiode amplification
Battery-powered instrumentation
Multi-pole filters
Sensors
Barcode scanners
Audio

Key features

Low offset voltage: 65 μV (maximum)
Low input bias current: 1 pA (maximum)
Low noise: 8 nV/√Hz
Wide bandwidth: 10 MHz
High open-loop gain: 1000 V/mV
Unity-gain stable
Single-supply operation: 2.7 V to 5.5 V
5-pin WLCSP (single AD8605) and 8-pin WLCSP (dual AD8606)
