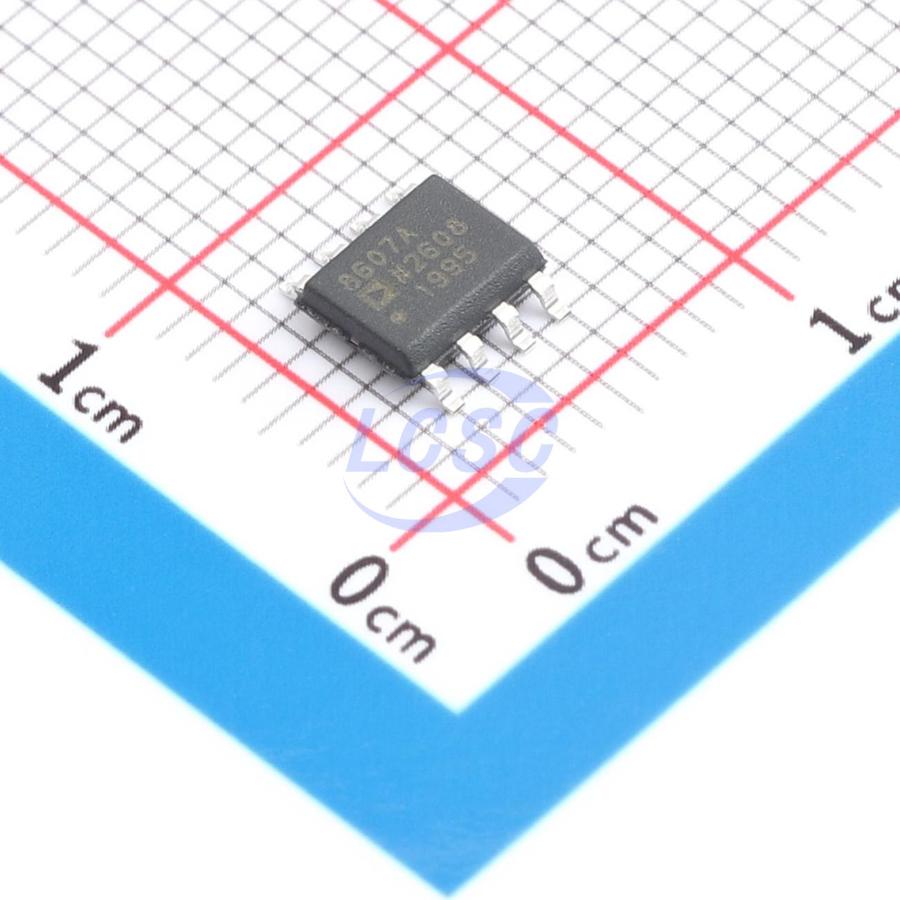

AD8607ARZ-REEL

2 50uV 0.1V/us 1pA 100dB 50uA 316kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Precision Micropower, Low Noise CMoS Rail-to-Rail Input/Output Operational Amplifiers

Manufacturer: ADI
Manufacturer part #: AD8607ARZ-REEL
Store part #: C578775
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,984 in stock

#C578775

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹540.74	₹540.74
10+	₹473.74	₹4,737.40
30+	₹434.06	₹13,021.80
100+	₹374.01	₹37,401.00
500+	₹355.37	₹1,77,685.00
1,000+	₹347.13	₹3,47,130.00

Quantity (min 1)

1 × ₹540.74

₹540.74

excl. GST

₹638.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8607ARZ-REEL

₹540.74 for 1 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 50uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 4.5uV/℃
Quiescent Current: 50uA
Gain Bandwidth Product: 316kHz
Input Voltage Noise Density: 22nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.15 g

Overview

The AD8603/AD8607/AD8609 are single/dual/quad micropower rail-to-rail input and output amplifiers, respectively, that feature very low offset voltage as well as low input voltage and current noise. These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. The parts are fully specified to operate from 1.8 V to 5.0 V single supply or from ±0.9 V to ±2.5 V dual supply. The combination of low offsets, low noise, very low input bias currents, and low power consumption makes the AD8603/AD8607/AD8609 especially useful in portable and loop-powered instrumentation. The ability to swing rail to rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.

Applications

Battery-powered instrumentation
Multipole filters
Sensors
Low power ASIC input or output amplifiers

Key features

Low offset voltage: 50 μv maximum
Low input bias current: 1 pA maximum
Single-supply operation: 1.8 V to 5 V
Low noise: 22 nV/√Hz
Micropower: 50 μa maximum
Low distortion
No phase reversal
Unity gain stable
