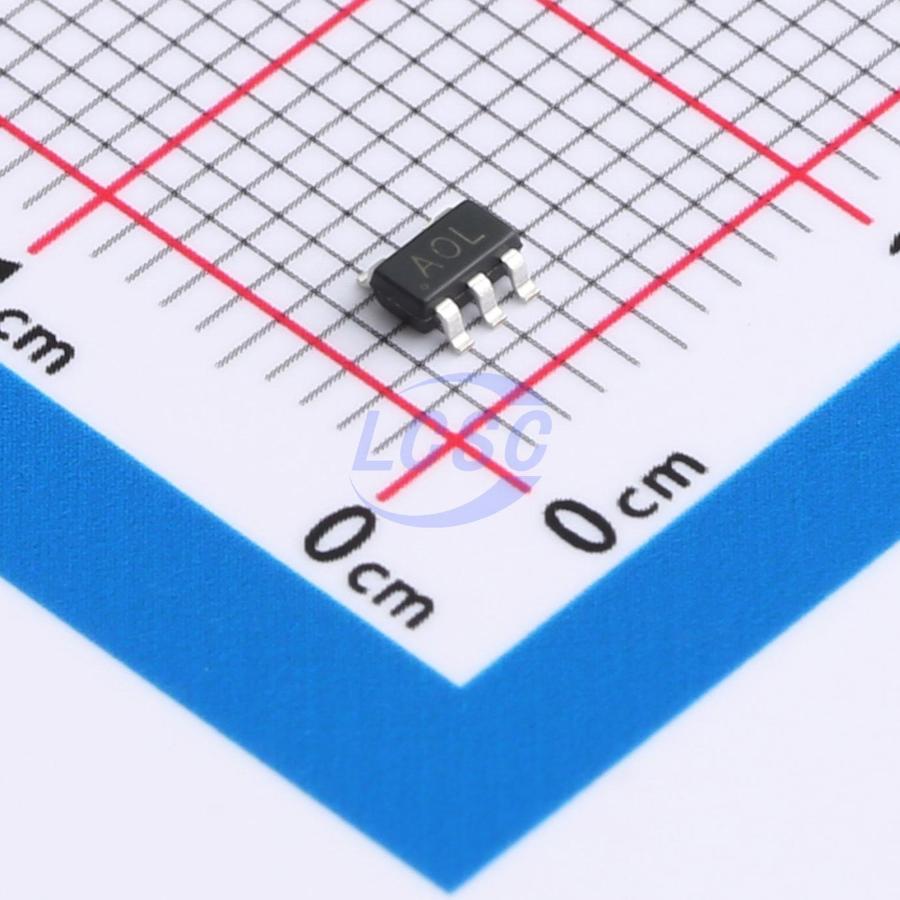

AD8628ARTZ-MS
30mA 1 2uV 5V/us 500pA 130dB 6MHz 600uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Ultra Low Noise Rail-to-Rail I/O CMOS Precision OPERATIONAL AMPLIFIERS
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AD8628ARTZ-MS
- Store part #
- C22462533
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,370 in stock
#C22462533
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.99 | ₹67.99 |
| 10+ | ₹60.17 | ₹601.70 |
| 30+ | ₹56.25 | ₹1,687.50 |
| 100+ | ₹52.35 | ₹5,235.00 |
| 500+ | ₹49.96 | ₹24,980.00 |
| 1,000+ | ₹48.66 | ₹48,660.00 |
1 × ₹67.99
₹67.99
excl. GST
₹80.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD8628ARTZ-MS
₹67.99 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -25℃~+125℃
- Ib - Input Bias Current
- 500pA
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Input Offset Voltage Drift(Vos TC)
- 30nV/℃
- Gain Bandwidth Product
- 6MHz
- Quiescent Current
- 600uA
- Features
- Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation
- Input Voltage Noise Density
- 6nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1V;1V~2.75V
- Single Supply
- 2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The AD8628 series represents a new generation of low noise op-amps, offering excellent DC accuracy and AC performance. Rail-to-rail input and output, low offset (2μV), low noise (6nV/√Hz), 600μA quiescent current, and 6MHz bandwidth make these devices well suited for a wide range of precision and portable applications. In addition, the devices feature a wide supply range (2V to 5.5V) and excellent power supply rejection, making them suitable for applications powered directly from batteries without regulation. The AD8628ARTZ (single), AD8629ARZ-MS (dual), and AD8630ARZ-MS (quad) op-amp series operate over a temperature range of -25°C to +125°C. The AD8628ARTZ-MS, AD8629ARZ-MS/AD8630ARZ-MS devices are low noise, unity-gain stable, rail-to-rail precision op-amps operating from a single supply voltage of 2V to 5.5V (±1V to ±2.75V). A supply voltage exceeding 6V absolute maximum may permanently damage the amplifier. Rail-to-rail input and output swing significantly increases dynamic range, especially in low supply applications. Good layout practice requires a 0.1μF bypass capacitor connected as close as possible to the supply pins. The AD8628ARTZ-MS, AD8629ARZ-MS/AD8630ARZ-MS devices feature internal phase reversal protection. Many op-amps exhibit phase reversal when the input exceeds the linear common-mode range. This condition most commonly occurs in noninverting circuits, where an input beyond the specified common-mode voltage range causes the output to invert to the opposite rail. The inputs of the AD8628ARTZ-MS, AD8629ARZ-MS/AD8630ARZ-MS are protected against phase reversal due to common-mode overvoltage. Instead, the appropriate rail clamps the output voltage.
Applications
- ADC buffers
- Audio equipment
- Medical instruments
- Handheld test equipment
- Active filtering
- Sensor signal conditioning
Key features
- Input offset voltage: 2μV (typical)
- Zero drift: 0.03μV/°C (typical)
- Ultra-low noise: 6nV/√Hz at 1kHz
- Supply range: 2V to 5.5V
- Gain bandwidth: 6MHz
- Slew rate: 5V/μs
- Quiescent current: 600μA (Vs = 5V)
- Rail-to-rail input and output
- Miniature packages: AD8628ARTZ - MS: SOT-23-5; AD8629ARZ - MS: SOP-8; AD8630ARZ - MS: SOP-14
